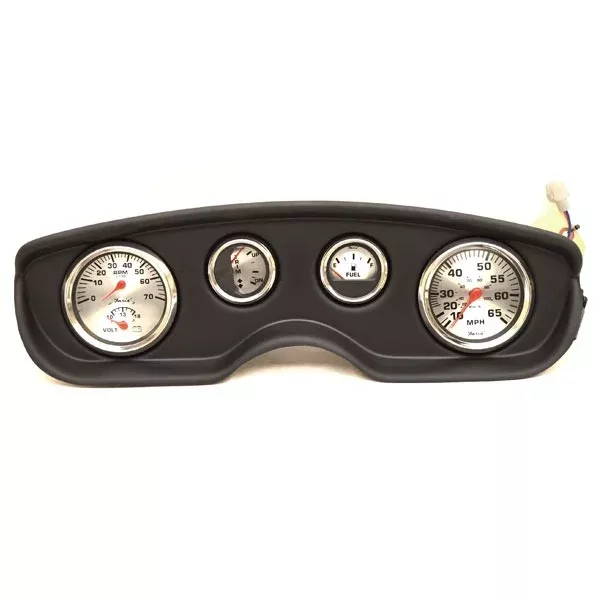

Boat part number 8302677 is a new OEM gauge panel manufactured for Lund, part number 2242074396 .
Constructed of black marine grade plastic with a matte finish, this panel measures approximately 18 1/4″ W x 6″ H overall. Features a set of Spun Silver series Faria gauges.
These clear halogen bulb illuminated gauges feature silver bezels, flat lens, spun silver faces, black lettering and numerals, and red needle. Includes mounting bracket and pigtail harness.
The gauges are as follows:
- (1) Multi-Function 7000 RPM Tachometer / 10-18 Volt | GTC047A | Has (1) 4 spade male connection. Set up for 4/6/8 Inboard Cylinders or 4/6/8/10/12 Outboard Pole engines.
- (1) Trim Gauge | GPC103A | Has (1) 4 spade male connection. Set up for Mercury / Yamaha engines.
- (1) Fuel Gauge | GPC102A | Has (1) 4 spade male connection.
- (1) 10-65 MPH Speedometer | SEK639A | Has (2) single spade male and (1) pitot style connections.
Specifications:
- Boat Manufacturer: Lund
- Part Number: 2242074396
- Material: Plastic
- Color: Black
- Finish: Matte
- Overall Dimensions: 18 1/4″ W x 6″ H
- Connections: (1) 2 pin male, (1) 4 spade male
- Tachometer Set Up For 4/6/8 Inboard Cylinders or 4/6/8/10/12 Outboard Pole Engines.
- Trim Set Up For Mercury / Yamaha (2001 and newer) Engines
