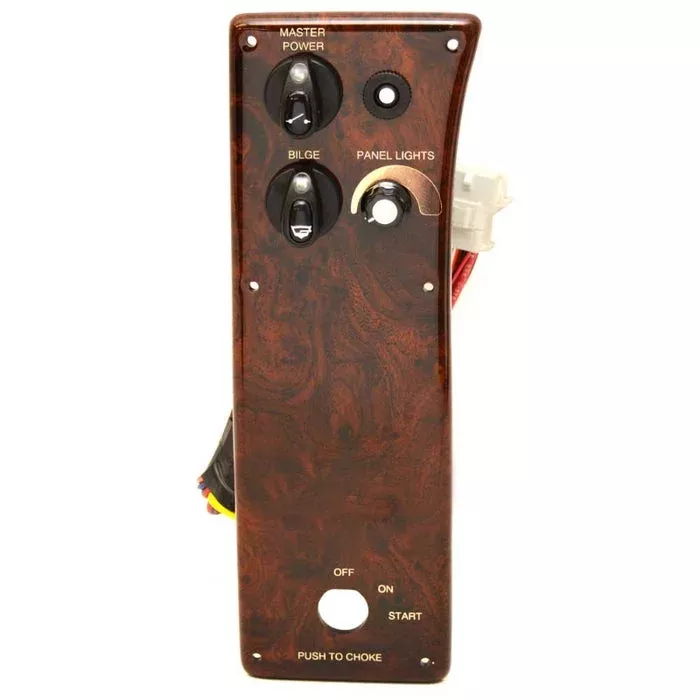

Boat part number 8303053 is a new OEM ignition switch panel for a 2005 Lund MR. Pike model Boat, part number 1995164 .
This ignition panel is constructed out of faux woodgrain marine grade plastic with a glossy finish. The panel measures approximately 11″ L x 3 1/2″ H, and (tapers to 3 7/8″ W) overall.
There are (6) approximately 1/8″ Dia. countersunk mounting holes spaced 2 3/4″ apart center on center:
Features:
- (1) Illuminated Master Power – Turn-style On/Off Rotary Switch
- (1) Illuminated Switch – Turn-style On/Off Rotary Switch
- (1) Panel Lights – Turn-Style Rotary Switch
- (1) Push-To-Reset Push-Button Breaker
Cutouts:
- (1) 3/4″ Dia.- Flatten Sides Ignition Cutout
Connection:
- (1) 8 Pin Male Connector
Specifications:
- Boat Manufacturer: Lund
- Model: Mr. Pike
- Year: 2005
- Part Number: 1995164
- Material: Plastic
- Color: Woodgrain
- Finish: Glossy
- Overall Dimensions: 11″ L x 3 1/2″ H, and (tapers to 3 7/8″ W)
- Mounts: (6) 1/8″ Dia. Holes
