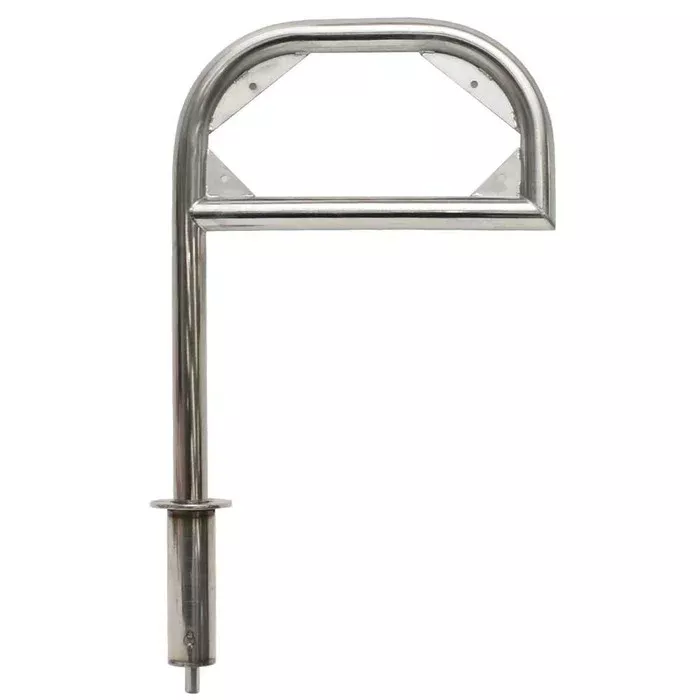

Boat part number 1115045 is a new forward facing seat backrest frame for Mako Boats, part number 329205 .
This seat frame is constructed out of 1 1/4″ Dia. stainless steel tubing and measures approximately 24 1/2″ H x 15″ W overall. Features a 3″ Dia. flange on bottom section, which has a 1 3/4″ Dia. and requires a 2″ Dia. x 5 3/4″ D cutout. Top section can rotate 90° degrees and lock into place in bottom section. See photos for all measurements. Top inner section has (4) 1/4″ Dia. mounting holes, and bottom section mounts with (3) 1/4″ Dia. holes.
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Mako Boats
- Part Number: 329205
- Material: Stainless Steel
- Color: Silver
- Finish: Polished
- Overall Dimensions: 24 1/2″ H x 15″ W
- Cutout: 2″ Dia. x 5 3/4″ D
- Mounts: (7) 1/4″ Dia. mounting holes
