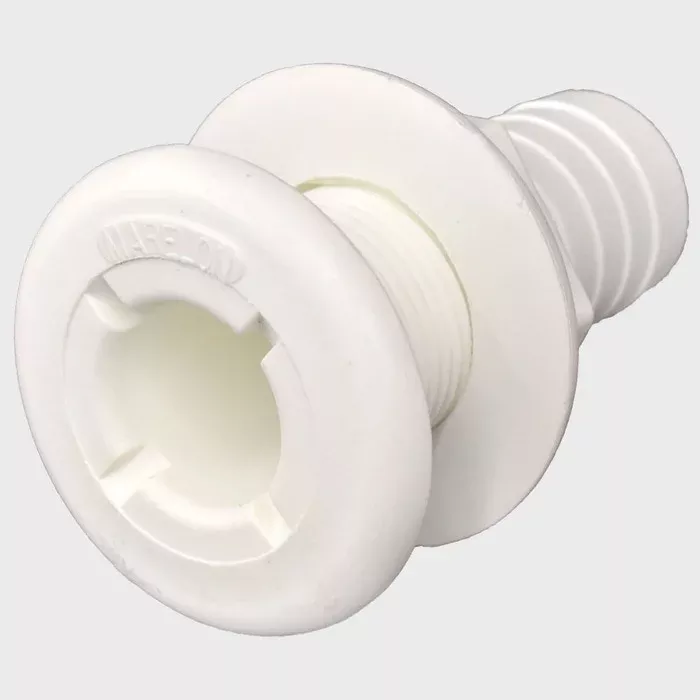

Boat part number 1119439 is a new CF253 mushroom head thru hull fitting from Marelon, part number 906070 . Commonly used on Monterey boats, but may be used on other boats.
This thru hull is constructed out of white plastic. It measures approximately 3 3/8″ L x 2 3/8″ Dia. overall and mounts in a 1 1/4″ Dia. cutout with a max thickness of 1″ . There is a 1 1/8″ Dia. barbed fitting on the end.
Specifications:
- Boat Manufacturer: Monterey
- Part Number: Unavailable
- Part Manufacturer: Marelon
- Part Number: 906070
- Material: Plastic
- Color: White
- Finish: Matte
- Overall Dimensions: 3 3/8″ L x 2 3/8″ Dia.
- Cutout: 1 1/4″ Dia.
- Max Thickness: 1″
- Connections: 1 1/8″ Dia. Barbed
