02 · Overview

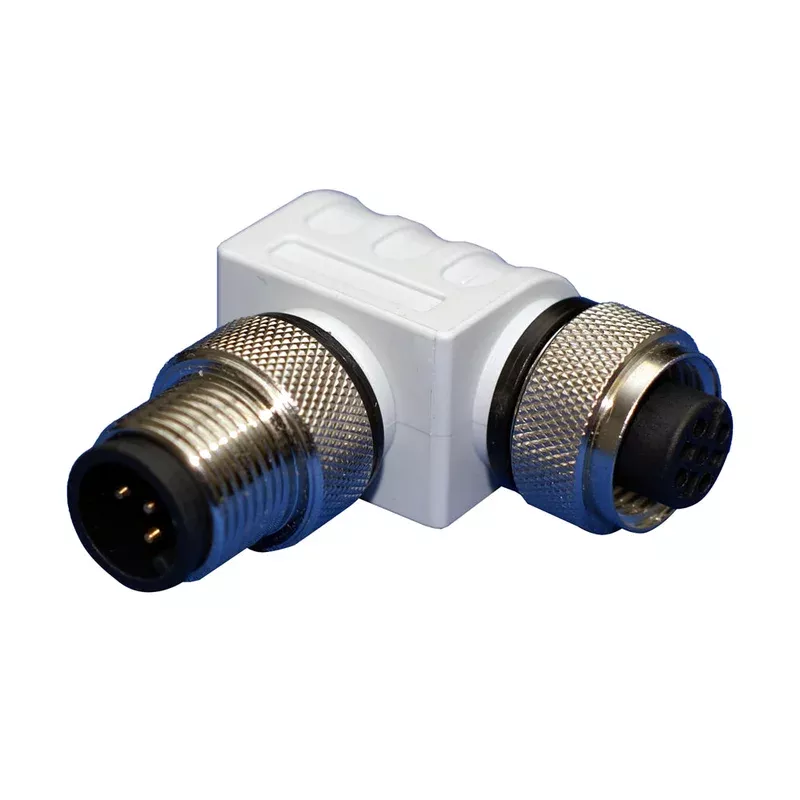

Maretron Micro Elbow — Product
90 degree male to female connector for Micro or Mid size cable runs.
Maretron ELBCMCF Attributes
The Micro Elbow is used in spots where it is impossible to bend a cordset around tight corners.The elbow easily connects to a tee or double-ended cordsets making 90 degree turns practical at the end or anywhere along the line.
- Mounting hole for secure fastening of cabling system
- Waterproof seals for reliable connections
- Nickel plated brass ideally suited for harsh marine environment
This product is brand new, unopened and in a sealed state in its original factory packaging. This …
- Molded Body Mat/Color: Thermoplastic PUR/Gray
- Contact Carrier Mat/Color: Nylon PUR
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
ELECTRICAL:
- Rated Current: 4.0 Amps
- Rated Voltage: 50 V
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6P
- Temperature Range: -40°C to 105°C (-40°F to 221°F)
- APPROVALS NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
SKU: NVN-39341
MPN: ELB-CM-CF
UPC: 873804002644
