Maretron Mini Tee — Product
A Tee is used to tap into the trunk line for adding a mini drop connection.Gold Contacts for greatest reliability.ÂKeyed connectors for error-free connections.
Maretron NMNFNF Attributes

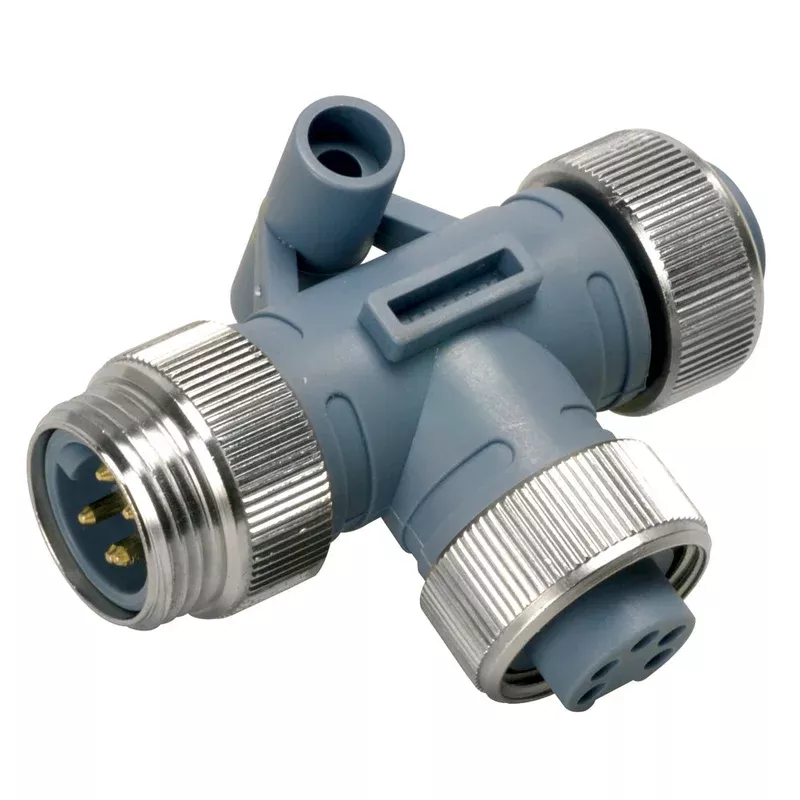

Mini Tee
A Tee is used to tap into the trunk line for adding a drop connection.
Male (left)
Female (Bottom)
Female (right)
The mini T-shape T-shape is used to insert the trunk line to add branch connections. Gold-plated contacts to ensure the highest reliability of the key connector, to achieve error-free connection of external threads (left)…
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
ELECTRICAL:
- Rated Current: 9.0 Amps
- Rated Voltage: 600 V
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6P
- Temperature Range: -40°C to 80°C (-40°F to 176°F)
APPROVALS:
- NMEA: NMEA 2000 APPROVED
- IEC: IEC 61162-3
SKU: NVN-31813
MPN: NM-NF-NF
UPC: 873804002309
