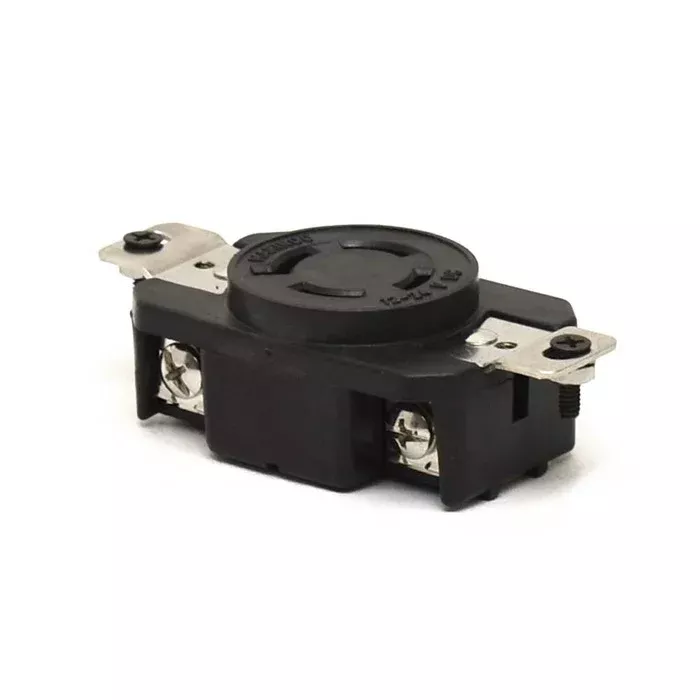

Boat part number 1104792 is a new power outlet from Marinco, part number unavailable.
This outlet is constructed out of stainless steel and marine grade plastic. Measures approximately 3 5/8″ L x 1 5/8″ W x 1 1/8″ H overall. Requires an approximate 2 1/2″ L x 1 5/8″ W cutout. Mounts using (2) 1/4″ H x 3/8″ W mounting holes set apart 3 1/4″. Rated for 12 / 24V DC. Connects using (4) 1/4″ Dia. screw terminals and (1) 4 pin plug connector.
Specifications:
- Part Manufacturer: Marinco
- Part Number: Unavailable
- Material: Stainless Steel / Plastic
- Color: Black
- Finish: Matte
- Electrical: 12 / 24 VDC
- Overall Dimensions: 3 5/8″ L x 1 5/8″ W x 1 1/8″ H
- Cutout: 2 1/2″ L x 1 5/8″ W
- Mounts: (2) 1/4″ H x 3/8″ W Holes Set Apart 3 1/4″
- Connections: (4) 1/4″ Dia. Screw Terminals and (1) 4 Pin Plug Connector
