Marinco Wiper Motor 1000 Series – 12V – 1.5″ Shaft – 80° — Product

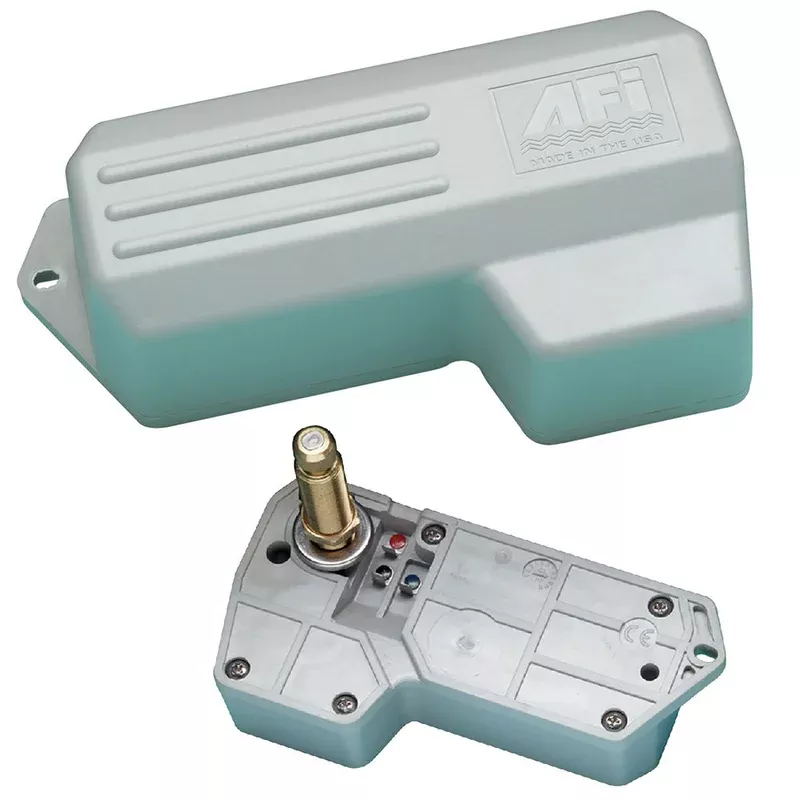

Wiper Motor 1000 Series – 12V – 1.5″ Shaft – 80° The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18″ Deluxe arm and 18″ Deluxe blade combination at sweep sets of 80 degree or less or 16″ Deluxe arm and 16″ Deluxe blade combinations at a sweep set of 110 degree.Features:
- Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
- 0.625″ diameter shaft (16 mm)
- 12 volt heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Retail version includes 5 amp fuse and holder (on/off switch not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5″ and 2.5″ (includes .5″ length of knurled arm fitting)
- Measures approximately 6.625″ L x 3.375″W x 2″ D
- Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8-10.0 amps
- No load current: 0.8-1.2 amps+
Sold as a unit of measurement: The EA 1000 waterproof wiper motor can power an 18″ x 18″ luxury arm/blade combination with a sweep kit of 80° or less. Factory scan is preset…
SKU: NVN-79306
MPN: 36180
UPC: 035028361802
