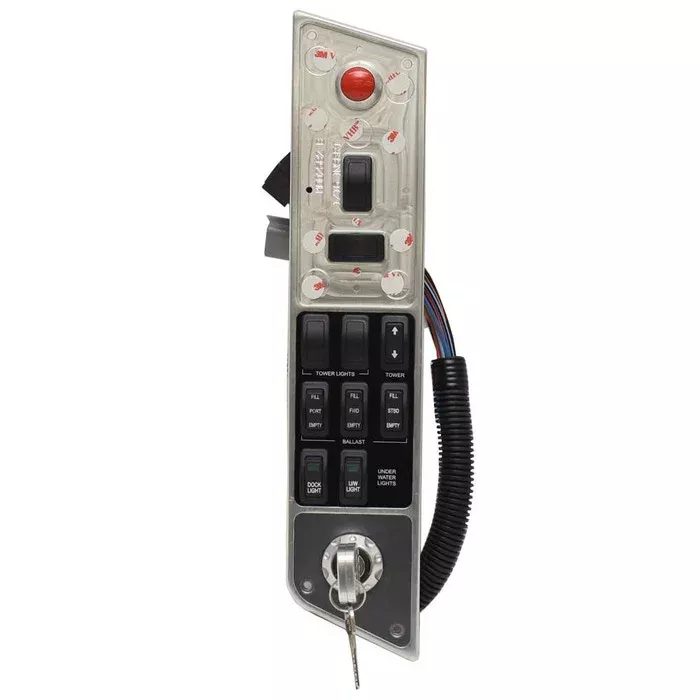

Boat part number 8402958 is a new armrest ignition switch panel for MasterCraft Boats, part number 504031 . Manufactured by BH Electronics, part number 240-06202-P .
This ignition panel is constructed out of brushed billet aluminum. It measures approximately 14 3/8″ L x 3″ W overall and mounts via (4) 3/16″ Dia. mounting holes. It connects via (1) 11-spade male, (1) 6-pin male Deutsch and (1) 3-pin male Deutsch.
This panel features the following:
- (1) 4-Position Ignition Switch | ACC/OFF/ON/START
- (1) Push Button
- (1) TOWER Rocker Switch | Momentary ON/OFF/Momentary ON
- (1) BALLAST Rocker Switch | FILL/PORT/EMPTY | ON/OFF/ON
- (1) BALLAST Rocker Switch | FILL/FWD/EMPTY | ON/OFF/ON
- (1) BALLAST Rocker Switch | FILL/STBD/EMPTY | ON/OFF/ON
- (1) UNDERWATER LIGHT Rocker Switch | DOCK LIGHT | ON/OFF
- (1) UNDERWATER LIGHT Rocker Switch | UW LIGHT | ON/OFF
- (4) Rocker Switch Blanks
- (2) Keys
Please check with your local MasterCraft Boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: MasterCraft Boats
- Part Number: 504031
- Part Manufacturer: BH Electronics
- Part Number: 240-06202-P
- Material: Billet Aluminum
- Color: Silver / Red / Black
- Overall Dimensions: 14 3/8″ L x 3″ W
- Mounts: (4) 3/16″ Dia. Mounting Holes
- Connections: (1) 11-Spade Male / (1) 6-Pin Male Deutsch / (1) 3-Pin Male Deutsch
