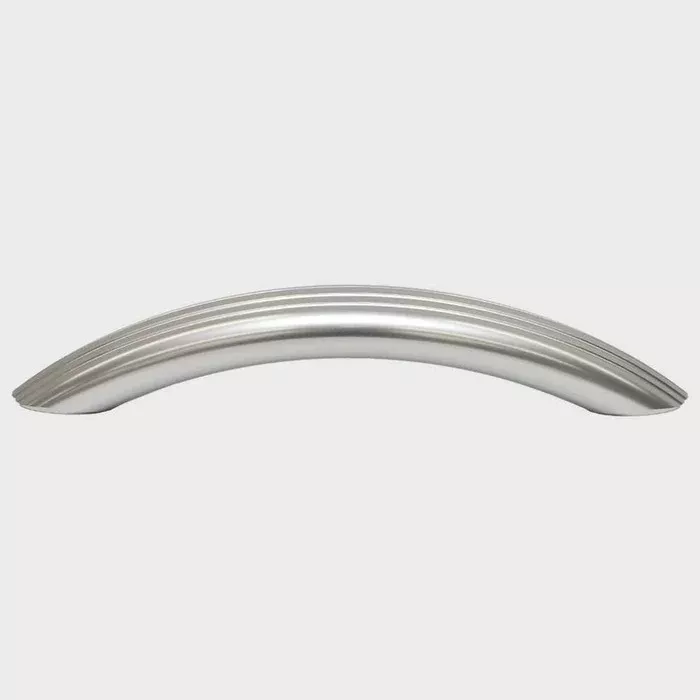

Boat part number 8402750 is a new grab rail for a MasterCraft XStar, part number 523276 . Manufactured by Gere Marie, part number M000503A .
This grab rail is constructed out of 1 1/8″ elliptical billet aluminum. Measures approximately 8 5/8″ L x 1 1/2″ H overall. Features indented stripes on the top, and approximate 1/2″ bow, and sits at an approximate 5° angle. Mounts via (2) 1/4″ Dia. holes spaced apart 7 1/4″ center to center.
Specifications:
- Boat Manufacturer: MasterCraft
- Model: XStar
- Year: Unavailable
- Part Number: 523276
- Part Manufacturer: Gere Marie
- Part Number: M000503A
- Material: Billet Aluminum
- Color: Silver
- Diameter: 1 1/8″ Elliptical
- Overall Dimensions: 8 5/8″ L x 1 1/2″ H x 1 1/8″ Thick
- Mounts: (2) 1/4″ Dia. Holes Spaced Apart 7 1/4″ CTC
