Boat part number 1083587 is a new NexSyslink series tachometer gauge with digital display for 2013 MasterCraft Boats, part number 440-960769 . Manufactured by Faria Beede, part number 960769 . May be used on other boats. Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibility.

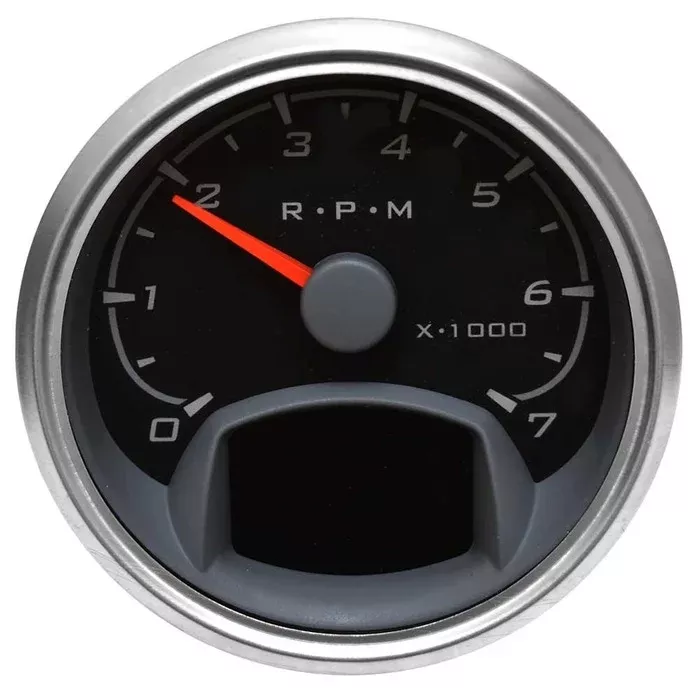

This 7,000 RPM tachometer features a flat lens, silver colored bezel, gray face, digital display screen, orange needle, and white graphics. Measures approximately 3 3/4″ Dia. across the face x 2 1/2″ D overall. Requires an approximate 3 1/4″ Dia. cutout. Has (2) threaded bolts, (1) 12-pin male, and (1) 6-pin Deutsch male connections.
NOTE: Mounting bracket is NOT included.
Specifications:
- Boat Manufacturer: MasterCraft
- Year: 2013
- Part Number: 440-960769
- Part Manufacturer: Faria Beede
- Series: NexSyslink
- Part Number: 960769
- Color: Silver / Gray
- Overall Dimensions: 3 3/4″ Dia. x 2 1/2″ D
- Cutout: 3 1/4″ Dia.
- Connections: (2) threaded bolts, (1) 12-pin male, (1) 6-pin Deutsch male
Wiring diagram NOT included. You will need to check with a dealer for the proper pin/wiring sequencing.
Pigtail connector / harness not included.
