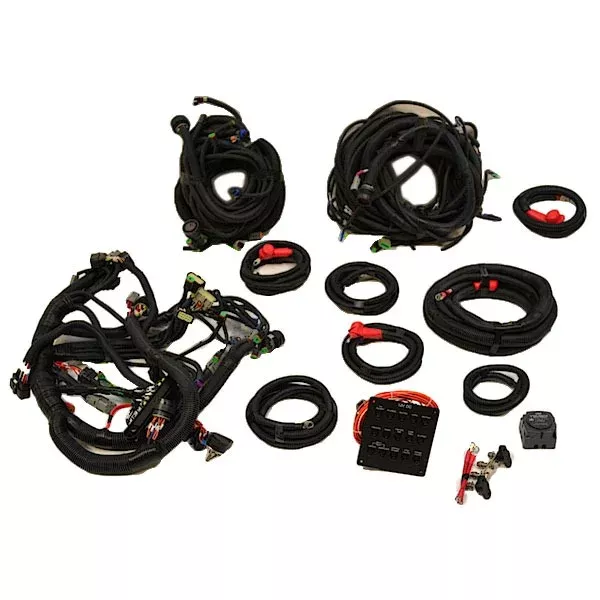

Boat part number 8401201 is a NEW, out of the box, boat main harness kit from MasterCraft, part number 508315 . Original OEM harness for 2010 200 / X-2 models.Also includes black booted push-to-reset breaker button panel: Measures approximately 5 1/2″ W x 6″ H and requires an approximate 5″ deep cutout. Equipped with the following breakers: (1) 12V Recept, (1) Shower, (1) Heater, (1) Horn, (1) Nav / Anc, (1) Ignition, (1) Wash, (1) Center Tab, (1) Surf Tabs, (1) Blower, (1) Driver Seat Heat, (1) Observer Seat Heat, (1) Stereo Power, (1) CTSY Power, (1) Tower Lights. This panel has (1) 4-pin male and (1) 16-pin male connections.
This kit includes the following contents with BH Electronics part numbers:
- (1) MS Trunk Harness Viper-MY2010, 246-01626-A
- (1) 200 / X2 Deck Harness-2010, 242-03890-H
- (1) 200 / X2 Hull Harness-2010, 240-03930-H
- (1) 200 / X2 Batt Cable Set, 243-01576-A
- (1) 200MS Dual Batt Eng Lead, 240-03685-H
- (1) 200 / 215 / 245 Helm PWR Leads, 240-03578-H
Specifications:
- Brand: BH Electronics
- Manufacturer: MasterCraft Boats
- MFG : 508316
- Model: 2010 X-15 / 215
Also includes a 125 amp VSR module with a 4-position terminal bar.12 VDC Breaker Panel:
- Material: Black Aluminum
- Overall Dimensions: 5 1/2″ W x 6″ H
- (1) 12V Recept- 15A
- (1) Shower- 10A
- (1) Heater- 15A
- (1) Horn- 10A
- (1) Nav / Anc- 7A
- (1) Ignition- 20A
- (1) Wash- 10A
- (1) Center Tab- 10A
- (1) Surf Tabs- 20A
- (1) Blower- 4A
- (1) Driver Seat Heat- 10A
- (1) Observer Seat Heat- 10A
- (1) Stereo Power- 3A
- (1) CTSY Power- 5A
- (1) Tower Lights- 20A
