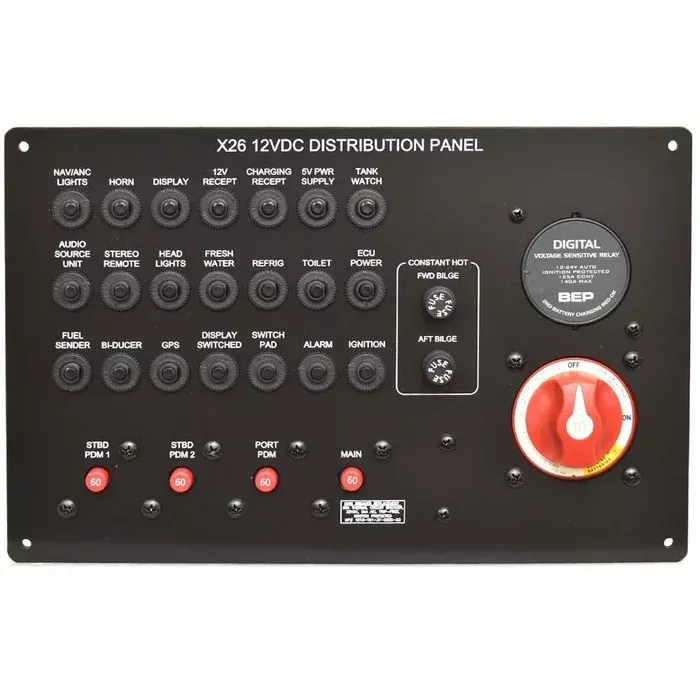

Boat part number 1108810 is a new 12V DC battery charging breaker panel from BH Electronics, part number 242-06393-P . Commonly used on 2018 X26 model MasterCraft Boats, part number 501213B .
This battery charging breaker panel is constructed out of black plastic and measures approximately 12 3/4″ W x 8 1/4″ H overall. Connects with (1) 4-pin female Deutsch connector, (1) 2-pin female Deutsch connector, (1) 4-pin male Deutsch connector. Mounts with (4) 3/16″ Dia. holes.
Features:
- (1) Battery Switch | On/Off
- (1) BEP Digital Voltage Sensitive Relay
- (1) FWD Bilge | Fuse
- (1) AFT Bilge | Fuse
- (1) NAV/ANC LIGHTS | Breaker | Push to Reset
- (1) HORN | Breaker | Push to Reset
- (1) DISPLAY | Breaker | Push to Reset
- (1) 12V RECEPT | Breaker | Push to Reset
- (1) CHARGING RECEPT | Breaker | Push to Reset
- (1) 5V PWR SUPPLY | Breaker | Push to Reset
- (1) TANK WATCH | Breaker | Push to Reset
- (1) AUDIO SOURCE UNIT | Breaker | Push to Reset
- (1) STEREO REMOTE | Breaker | Push to Reset
- (1) HEAD LIGHTS | Breaker | Push to Reset
- (1) FRESH WATER | Breaker | Push to Reset
- (1) REFRIG | Breaker | Push to Reset
- (1) TOILET | Breaker | Push to Reset
- (1) ECU POWER | Breaker | Push to Reset
- (1) FUEL SENDER | Breaker | Push to Reset
- (1) BI-DUCER | Breaker | Push to Reset
- (1) GPS | Breaker | Push to Reset
- (1) DISPLAY SWITCHED | Breaker | Push to Reset
- (1) SWITCH PAD | Breaker | Push to Reset
- (1) ALARM | Breaker | Push to Reset
- (1) IGNITION | Breaker | Push to Reset
- (1) Main | Breaker | 60A
- (1) STBD PDM 1 | Breaker | 60A
- (1) STBD PDM 2 | Breaker | 60A
- (1) PORT PDM | Breaker | 60A
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: MasterCraft
- Models: X26
- Year: 2018
- Part Number: 501213B
- Part Manufacturer: BH Electronics
- Part Number: 242-06393-P
- Material: Plastic
- Color: Black
- Rating: 12V DC
- Overall Dimensions: 12 3/4″ W x 8 1/4″ H
- Mounts: (4) 3/16″ Dia. Holes
