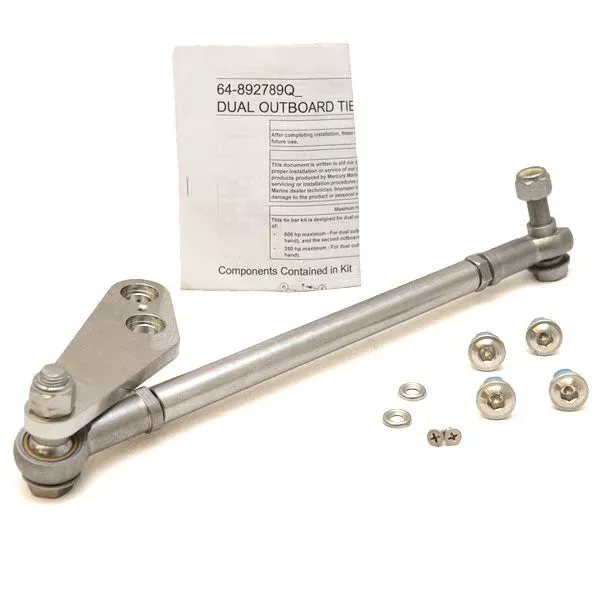

Boat part number 8602195 is a new dual outboard tie bar kit from Mercury Quicksilver, part number 64-892789Q23 . Commonly used on Larson Boats, part number 4309-1127 .
This tie bar kit is constructed of stainless steel, and measures approximately 19″ W x 7/8″ D with plate down and 14 3/8″ W x 7/8″ D with plate up overall. Has (3) mounting holes on plate that measure approximately (2) 1/2″ Dia. and (1) 1/8″ Dia. with (2) 1/2″ – 20 threaded bolts on each end. Designed for dual outboards with a combined maximum horsepower of 250 (both standard propeller rotation) to 500 (one standard and one counter propeller rotation).
Specifications:
- Boat Manufacturer: Larson Boats
- Part Number: 4309-1127
- Part Manufacturer: Mercury Quicksilver
- Part Number: 64-892789Q23
- UPC: 702755029267
- Material: Stainless Steel
- Overall Dimensions: 19″ W x 7/8″ D (With Plate Down) and 14 3/8″ W x 7/8″ D (With Plate Up)
- Mounts: (2) 1/2″ Dia. Holes / (2) 1/2″ – 20 Threaded Bolts / (1) 1/8″ Dia. Hole
