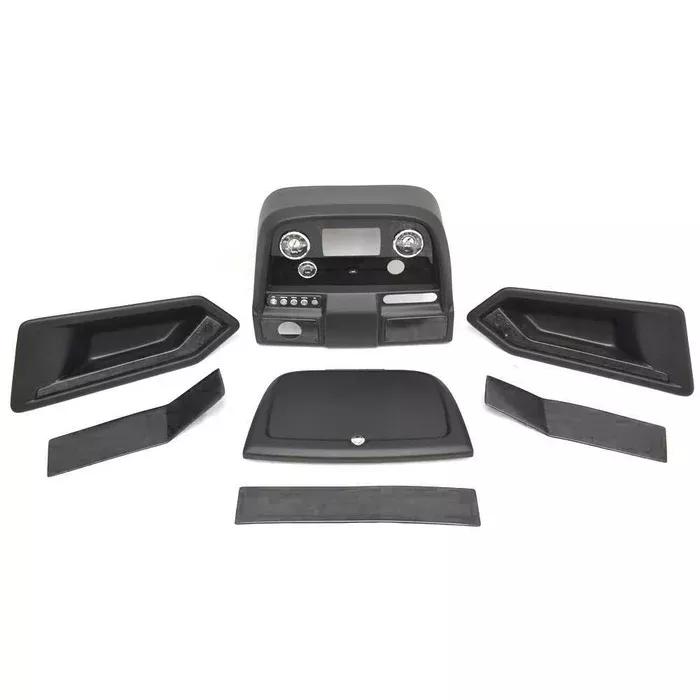

Boat part number 1099354 is a new 7-piece panel kit for a Skye 2385 model Misty Harbor boat, part number 002170G18 . Manufacturer unavailable.
Kit includes the following:
- (1) Steering Console Panel
- (1) Glove Box Door
- (2) Side Cubby Panels
- (2) Angled Side Trim Pieces
- (1) Trim Piece
Steering Console Panel
This panel is constructed out of marine plastic wrapped in black and charcoal colored vinyl and black acrylic face. Measures approximately 26″ W x 9″ H overall.
This panel has (3) pre-installed Sterling Silver series gauges from Teleflex Marine. Each gauge has a domed lens, silver colored bezel, black colored face, white numerals and orange-tipped black needles.
This panel features the following gauges:
- 50 MPH Speedometer | PN: 68306F | (1) Pitot Connection
- 7000 Tachometer / Volt Multifunction| PN: 69074F | Set up for 4/6/8 Cylinder and 2/3/4/5/6 Pole Engines
- Fuel | PN: 67021F
It also features (4) LED push button switches labeled as follows:
- (1) Momentary On/Off “Horn”
- (1) Momentary On/Off “Nav/Anc Lights-Blue Nav / Red Anc”
- (1) On/Off “Dock Lights”
- (1) On/Off “Court Lights”
- (1) 3/4″ Dia Cutout “Acc”
This steering console features the following cutouts in the face:
- (1) 7″ L x 3 3/4″ H
- (1) 2 1/8″ OD
- (1) 6 3/4″ L x 1 1/2″ H
- (1) 3″ OD
Glove Box Door
This door is constructed out of marine plastic wrapped in black colored vinyl. Measures approximately 14 3/4″ H x 25 1/2″ W overall. Features push-to-open latch. Mounts via 7″ L x 5/8″ H hinge with (3) 1/8″ Dia. holes set apart 3″ center to center.
Side Cubby Panels
These panels are constructed out of marine plastic wrapped in black colored vinyl with graywood accents. Each measures approximately 29 1/2″ W x 11 3/8″ H (tapers down to 9 1/4″) x 6″ D overall. Each requires an approximate 26 3/4″ W x 9″ H x 5 7/8″ D cutout.
The starboard side panel features (1) USB port, and (1) 12 volt receptacle outlet.
Angled Trim Pieces
Each of these trim pieces are constructed out of marine plastic with a graywood pattern. Measures approximately 21 1/2″ L x 6″ H x 4 3/8″ D overall.
Trim Piece
These trim piece is constructed out of marine plastic with a graywood pattern. Measures approximately 21 1/2″ L x 6″ H x 4 3/8″ D overall.
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Sold a set of 7.
Specifications:
- Boat Manufacturer: Misty Harbor Pontoon Boats
- Model: Skye 2385
- Year: Unavailable
- Part Number: 002170G18
- Part Manufacturer: Unavailable
- Material: Plastic | Vinyl
- Color: Black
