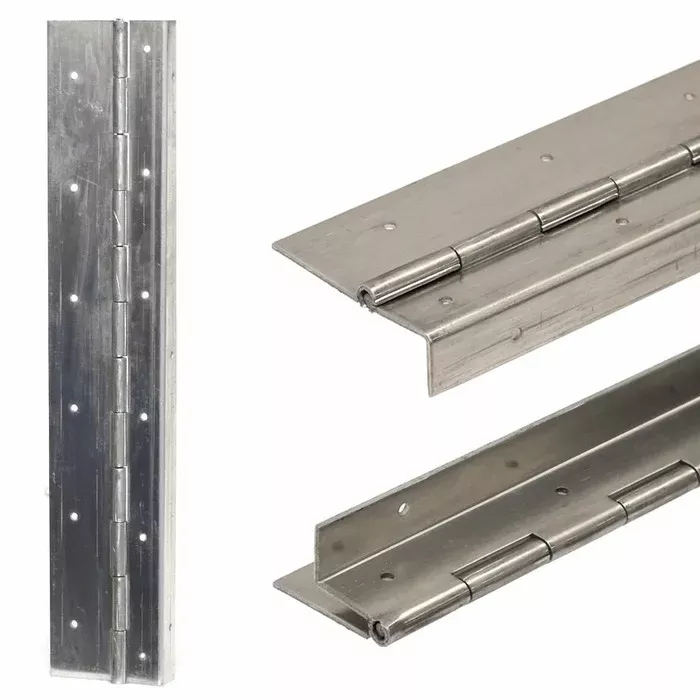

Boat part number 1041896 is a new, single offset piano hinge from Misty Harbor. May be used on other boats.
This hinge is constructed out of 13 gauge aluminum. It measures approximately 18″ L x 3 1/4″ W x 7/8″ H overall when opened and folds down to 2 1/4″ W. See photos for additional measurements. Mounts with (15) 3/16″ Dia. mounting holes.
Specifications:
- Boat Manufacturer: Misty Harbor
- Material: Aluminum
- Gauge: 13
- Pin: 1/4″ OD
- Overall Dimensions: 18″ L x 3 1/4″ W x 7/8″ H
- Folded Dimensions: 18″ L x 2 1/4″ W x 1 1/4″ H
- Mounts: (15) 3/16″ dia. Holes
