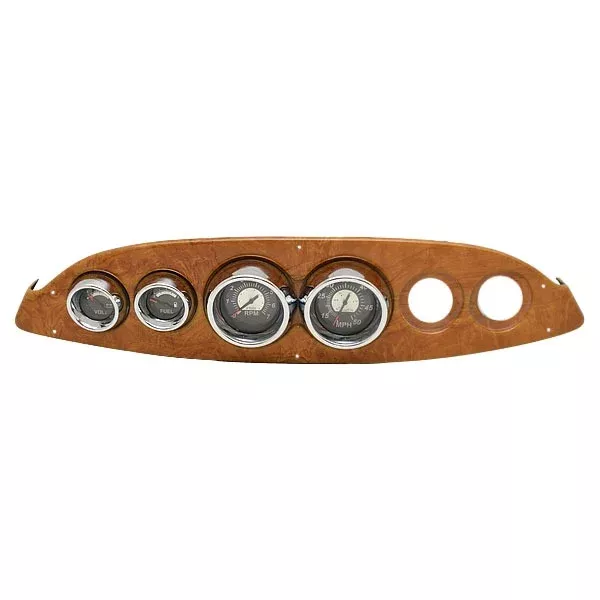

GLS Stock Number 1062656 is a new, out of the box, gauge panel for a Misty Harbor boat, part number/ year(s) / model unavailable.
This gauge panel is constructed of light faux woodgrain colored marine grade plastic, measures approximately 29 3/8″ long by 6 3/8″ high by 1/4″ thick overall. Features (3) black single bullet female, (3) blue single bullet female, (1) single spade,and (1) 6 pin male connectors. Mounts (6) 1/8″ diameter screws.
This panel includes the following gauges and cutouts:
- (1) Volt- part number: 67017
- (1) Fuel- part number: 67021
- (1) 7000RPM Tachometer: 67363 Set up for 2/3/4/5/6 Poles and 4/6/8 Cylinders.
- (1) 15-50 MPH Speedometer- part number: 68960
- (2) 2 1/8″ Dia. gauge cutouts
Specifications:
- Boat Manufacturer: Misty Harbor
- Part Number: Unavailable
- Material: Marine Grade Plastic
- Color: Light Woodgrain
- Finish: Polished
- Overall Dimensions: 29 3/8″ L x 6 3/8″ H x 1/4″ Thick
- Mounts: (6) 1/8″ Dia. screws
- Connections: (3) black single bullet female, (3) blue single bullet female, (1) single spade,and (1) 6 pin male connectors
