Boat part number 1107297 is a new bilge switch harness set of 3 from MNStar, set number unavailable.
This set contains the following pieces:
- 00-8518 REV A
- 00-8526 REV B

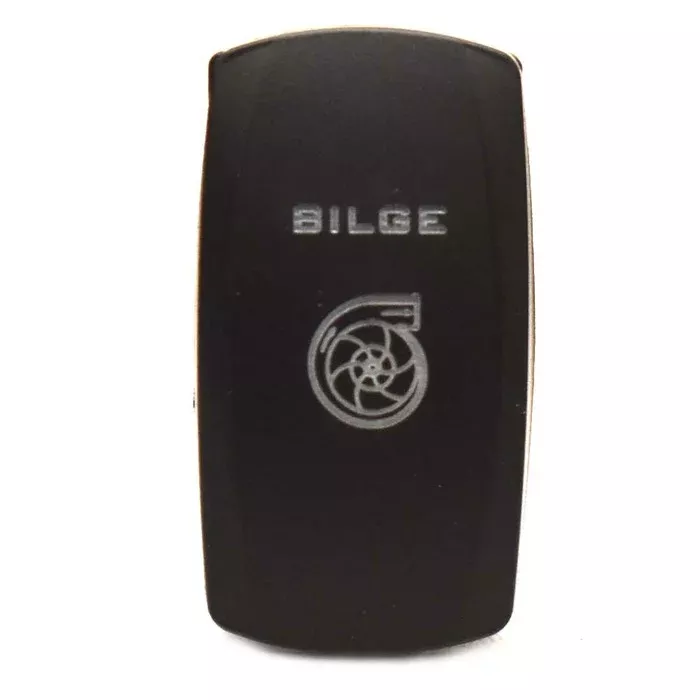

- (1) ON/OFF/ON Bilge Rocker Switch
This switch harness is constructed out of black woven plastic and 14 gauge wire. The rocker switch is constructed out of black plastic.
Each piece measures approximately as the following:
- 00-8518 REV A- 38′ L x 1/4″ Dia.
- 00-8526 REV B- 10′ l x 3/8″ Dia.
- Bilge Rocker Switch- 1 7/8″ L x 1 1/8″ W x 2″ D. Requires an approximate 1 5/8″ L x 7/8″ W cutout.
Bilge switch mounts with barbed press tabs. 00-8518 REV A includes (1) in-line 5 Amp Fuse. Rocker switch is rated for 20 Amps at 12 Volts
Each piece is connected as follows:
- 00-8518 REV A- (1) 1/2″ ID Ring Terminal | (1) 3-Pin Female Deutsch | (1) 2-Pin Male Deutsch
- 00-8526 REV B- (1) 2-Pin Male Deutsch | (1) 2-Pin Female Deutsch | (1) 8-pin Female Spade
- Rocker Switch- (4) Male Spade
Specifications:
- Part Manufacturer: MNStar
- Part Number: Unavailable
- Material: Woven plastic
- Color: Black
- Electrical: 20 A at 12 V (Rocker Switch)
