Boat part number 1115225 is a new gasoline / diesel fuel tank from Moeller, part number FT6028 . Commonly used on Larson Boats, part number 3228-9200 , but may be used on other boats.

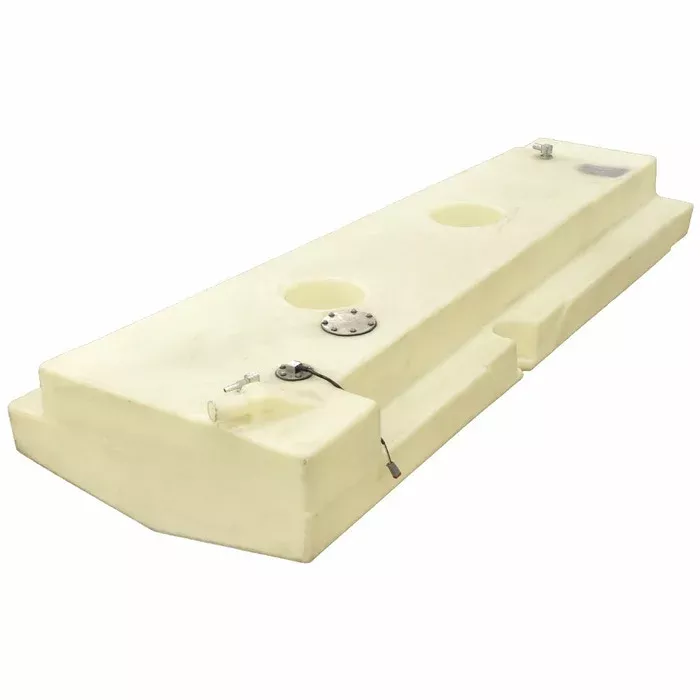

This fuel tank is constructed out of off-white cross-linked polyethylene and measures approximately 72 1/2″ L x 30″ W x 14″ H overall with fittings. Includes a fuel sending unit with the standard range of 35 – 240 Ohms. Manufacturer recommends this tank be used with either gasoline or diesel fuel.
Features the following connections:
- (1) 5/8″ Dia. Barbed Vent
- (1) 1 1/2″ Dia. Barbed Fuel Inlet
- (1) 3/8″ Dia. Barbed Fuel Outlet
- (1) 2-pin Female Deutsch Connector
Please see photos for all detailed measurements.
Specifications:
- Boat Manufacturer: Larson Boats
- Part Number: 3228-9200
- Part Manufacturer: Moeller
- Part Number: FT6028
- Material: Crosslinked Polyethlene
- Color: Off White
- Fuel Type: Gasoline / Diesel
- Wall Thickness: 0.235″
- Capacity: 60 Gallons / 227 Liters
- Overall Dimensions: 72 1/2″ L x 30″ W x 14″ H
Because of the size and/or commodity of this item, we must ship via truckline. The shown freight cost is for the LOWER 48 STATES ONLY and shipped to a business at a commercial address WITH LOADING DOCK. We can ship to your residence, or possibly a nearby terminal. We can also offer international shipping. Please call or email for a shipping quote if needed.
