Boat part number 7600923 is a new set of dash panels and a breaker panel for the 2016 Moomba Helix, part number 116370. Manufactured by BH Electronics.

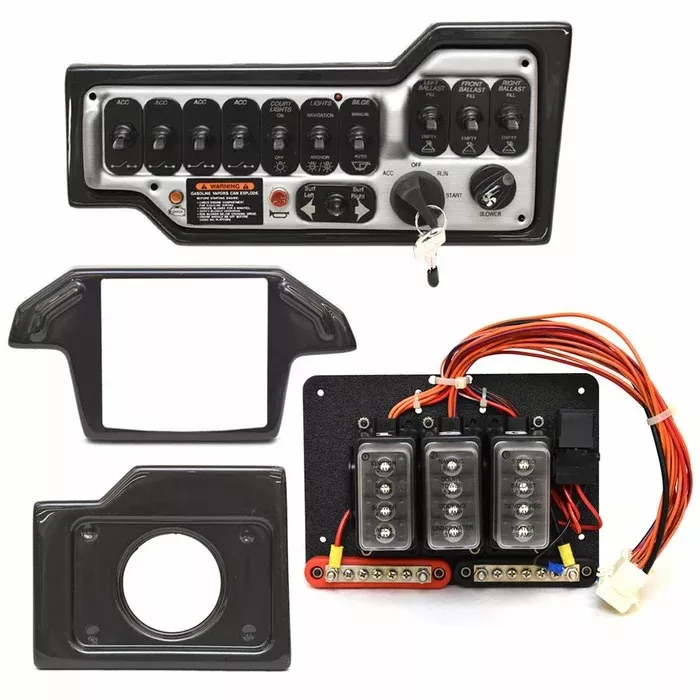

Included in box:
- Ignition Switch Panel
- Breaker Panel
- Device Blank Panel
- Blank Speaker Panel
Ignition Panel
This ignition switch panel is constructed out of black and silver colored plastic, and measures approximately 13 1/4″ L x 6″ H x 4 1/4″ D overall. Mounts with (4) 3/16″ Dia. holes set around the perimeter. Uses (9) bullet female connectors, (2) 15-pin male, (3) insulated male spade, (2) insulated female spade, (1) 12-pin male, (1) 9-pin female, and (1) 6-pin female connections. Features amber check engine light.
Includes (2) Keys.
This panel includes the following:
- ACC/OFF/RUN/START 4-Position Ignition Switch
- Rotary Style Blower Switch
- ON/OFF/ON Surf Left/Right Toggle Switch
- MOMENTARY ON/OFF Horn Push Button Switch
- ON/OFF/ON Right Ballast Fill Toggle Switch
- ON/OFF/ON Front Ballast Fill Toggle Switch
- ON/OFF/ON Left Ballast Fill Toggle Switch
- ON/OFF Bilge Manual/Auto Toggle Switch
- ON/OFF/ON Nav / Anchor Lights Toggle Switch
- ON/OFF Courtesy Lights Toggle Switch
- (4) ON/OFF ACC Toggle Switches
- ON/OFF/ON ACC Toggle Switch
Breaker Panel
The breaker panel is constructed out of black plastic with clear caps, and measures approximately 8 3/8″ L x 6″ H x 3 1/2″ D overall. Mounts with (4) 3/16″ Dia. holes set apart 4 1/8″ x 7 1/2″ center to center. Uses (1) bullet female connector, and (1) 15-pin female connections. Includes (12) pre-labelled push button breaker switches.
See photos for additonal measurements.
Specifications:
- Boat Manufacturer: Moomba Boats
- Model: Helix
- Year: 2016
- Part Number: 116370
- Part Manufacturer: BH Electronics
- Part Number: Unavailable
- Material: Plastic
- Color: Silver / Black
