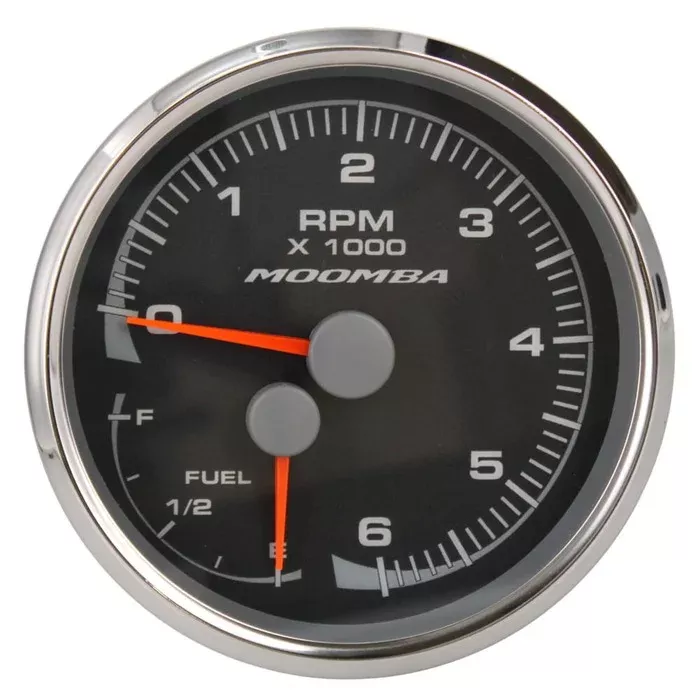

Boat part number 7910124 is a new NexSyslink multi-function gauge for Moomba Boats, part number unavailable. Manufactured by Beede, part number 961149 .
This multi-function gauge features a flat lens, silver colored bezel, black face, orange needles, and gray graphics. Features tachometer and fuel level readings.
It measures approximately 4 3/4″ Dia. across the face including bezel x 2 1/2″ D overall and requires a cutout of approximately 4 1/2″ Dia. It has (1) 6-pin male Deutsch and (1) 9-pin male Deutsch connection (connectors not included).
Mounting bracket included.
Specifications:
- Boat Manufacturer: Moomba
- Part Number: Unavailable
- Part Manufacturer: Beede
- Series: NexSyslink
- Part Number: 961149
- Color: Silver / Black
- Cutout Dimensions: 4 1/2″ Dia.
- Overall Dimensions: 4 3/4″ Dia. x 2 1/2″ D
- Connections: (1) 6-pin male Deutsch, (1) 9-pin male Deutsch
- Fuel: Gasoline
Wiring diagram NOT included. You will need to check with a dealer for the proper pin/wiring sequencing.
Pigtail connector / harness not included.
