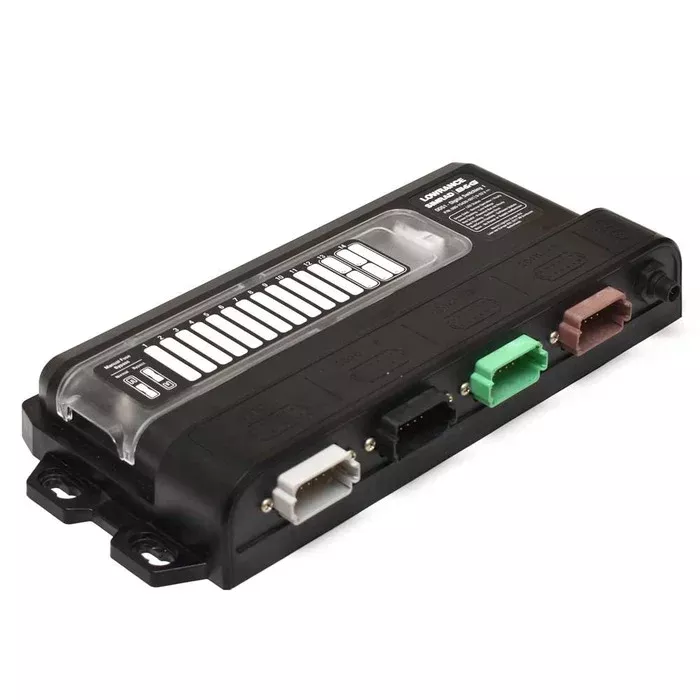

Boat part number 1099836 is a new digital switching unit from Navico, part number 000-15420-001 .
This digital switch measures approximately 13 7/8″ L x 2″ H x 6 3/4″ D overall. Connects via (4) 12-pin male and (1) 5-pin male plugs. Rated for 9-32 VDC. Compatible with Lowrance, Simrad, and B&G systems.
Specifications:
- Part Manufacturer: Navico
- Part Number: 000-15420-001
- UPC: 9420064113743
- Color: Black
- Overall Dimensions: 13 7/8″ L x 2″ H x 6 3/4″ D
- Electrical: 9-32 VDC
- Connections: (4) 12-Pin Male | (1) 5-Pin Male
