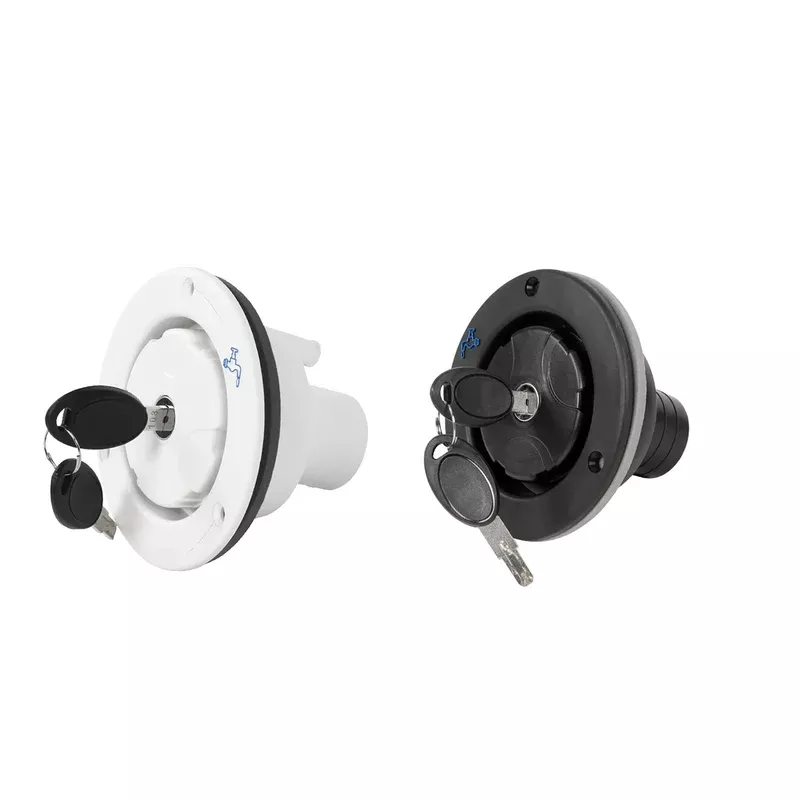

The Nomadic Supply Locking Gravity Water Fill InletfromNomadic Supply Company® allows you to fill the fresh water tank by loosely fitting a water hose to the fill inlet. Water should be filled at a low flow rate in order to have gravity pull the water through the drinking water fill hose and into your camper van fresh water tank.The Nomadic Supply Locking Gravity Water Fill Inlet includes a small water tap logo on the outside to indicate water only.
Nomadic Supply Locking Gravity Water Fill Inlet Features:
- The Nomadic Supply Locking Gravity Water Fill Inlet has an outside diameter of 110mm
- The Nomadic Supply Locking Gravity Water Fill Inlet requires an 80mm wall cutout that extends for 35mm.
- The push-on hose fitting, at the rear, will accept a 40mm internal diameter hose with a clamp.
- Fitting includes a foam seal to suit a flat outside wall.
- The breather connection is a 10mm hose barb.
- The Nomadic Supply Locking Gravity Water Fill Inlet is designed with venting holes to prevent water spraying when water is added.
- The Nomadic Locking Gravity Water Fill Inlet comes with 2 spare keys.
- Comes with screws for attaching to an RV, you’ll need your own stainless bolts if attaching to sheet metal unless you add wood or starboard behind the metal.
- Gravity water inlet features a bayonet style cap, 10mm air vent for faster fill rate
- Aperture diameter: Approx. 78mm/3inch
- Suitable for the thickness of the door plate: 30-40mm/1.18 – 1.57 inch
