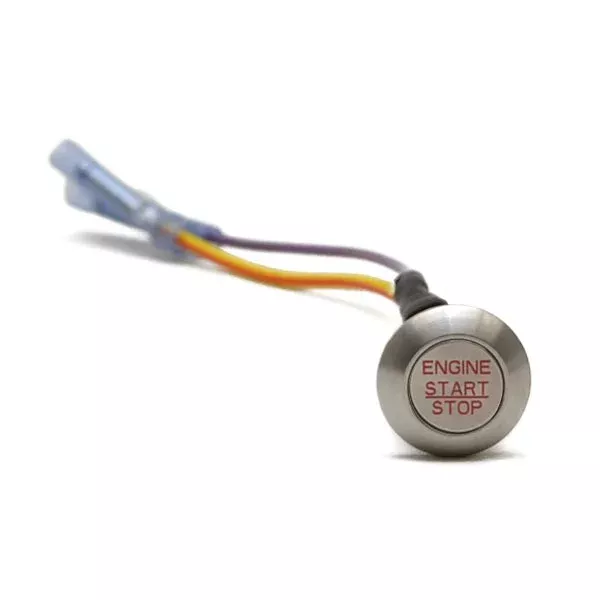

Boat part number 2001464 is a new engine start/stop push button switch from Otto, part number 21649 . Commonly used on MasterCraft Boats, part number 508929 , but may be used on other boats.
This ON/OFF push button switch is constructed out of brushed aluminum with red graphics. Rated at 28 VDC / 115 AC. It measures approximately 7/8″ Dia. x 1″ D overall and requires an approximate 5/8″ Dia. cutout. Has (2) 6″ single female pin connections.
Specifications:
- Boat Manufacturer: MasterCraft
- Part Number: 508929
- Part Manufacturer: Otto
- Part Number: 21649
- Material: Aluminum
- Color: Silver / Red
- Finish: Brushed
- Switch Style: ON/OFF
- Electrical: 28 VDC / 115 AC
- Overall Dimensions: 7/8″ Dia. x 1″ D
- Cutout Dimensions: 5/8″ Dia.
- Connections: (2) 6″ single pin
