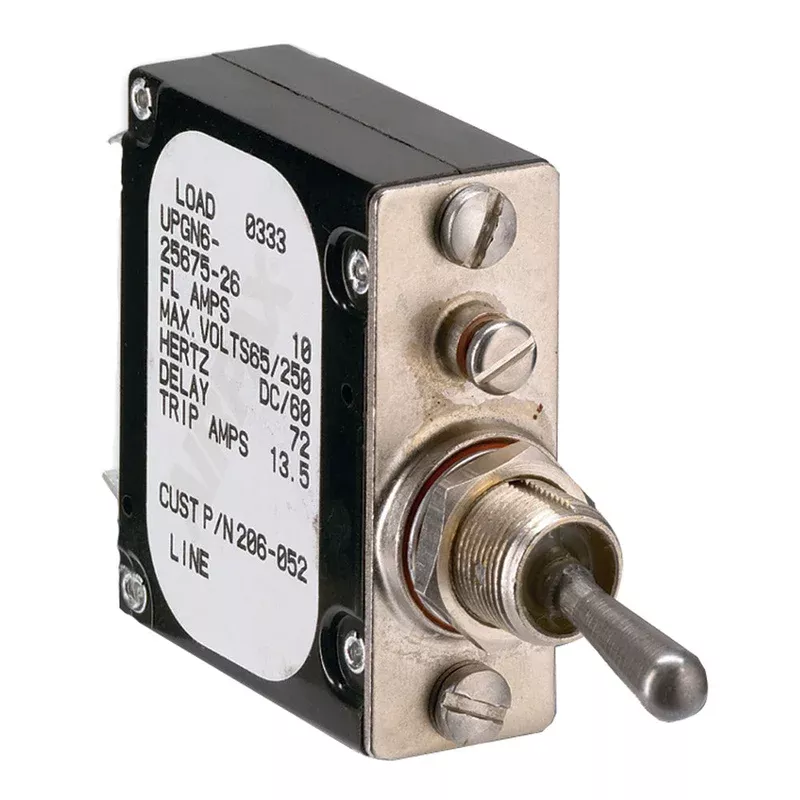

Paneltronics Breaker 5 Amps A-Frame Magnetic Waterproof — Product
Panel Seal/Waterproof “A” Frame Magnetic Circuit Breakers
- Branch AC or DC circuit breaker for Paneltronics electrical distribution panels
- Meets all American Boat and Yacht Council (ABYC) Standards for non-ignition protected circuit breakers
- UL Recognized (UL 1077) for use in th USA, and CSA Certified for use in Canada
- Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)
- Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)
- Handle Color – Metal with silicon rubber seal
- Maximum Aperage – 50 Amps
- Maximum Voltage/AIC – 32 VDC/2,500 amps with no back-up fuse (ABYC E-11.10.1.5.5)
- Rated Switch Cycles – 10,000 actuations at rated current and voltage
- Electrical Hardware – Hex nut 1/2-32 (supplied with circuit breaker); Lockwasher 1/2″ internal tooth (supplied with circuit breaker)
- Optional Boot – Black silicone rubber (P/N 048-015)
The product is made of high-quality materials and can provide you with many years of service. Use the most advanced technology to design and consider the customer. It will meet your needs…
SKU: NVN-29828
MPN: 206-051S
UPC: 602290201404
