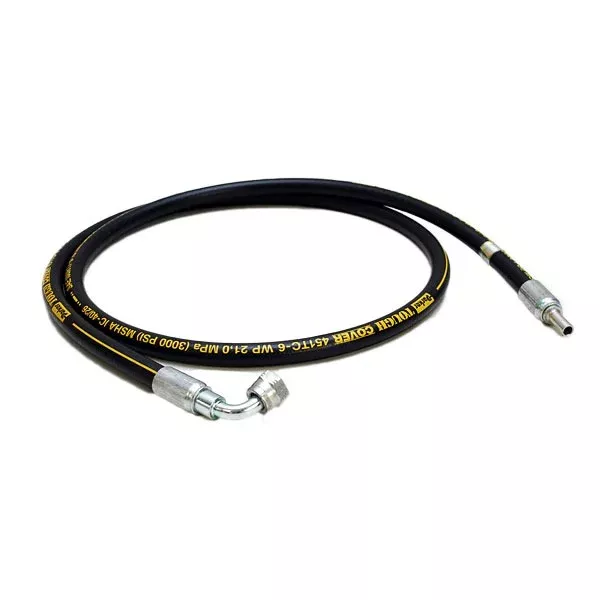

Boat part number 1048577 is anew old stock hydraulic hose from Parker, part number F451TC-B2-1D-6-10-6-82 . Commonly used in Carver yachts but can be used in others.
Parkers 451TC hose is what to specify when abrasion resistance and ease of use are required. Providing 80x the abrasion resistance compared to standard rubber covered hose, it offers 3000psi constant working pressure and is ½ SAE 100R1 minimum bend.
Specifications:
- Boat Manufacturer: Carver Yachts
- Part Number: 7566609
- Part Manufacturer: Parker
- Part Number: F451TC-B2-1D-6-10-6-82
- Media: Petroleum base hydraulic fluids and lubricating oils
- Maximum Working Pressure (psi): 3000
- Maximum Working Pressure (MPa): 21,0
- Material – Hose Inner Tube: Synthetic rubber
- Material – Hose reinforcement: One or two braids steel wire
- Material – Cover: Synthetic rubber abrasion resistant, MSHA accepted
- Minimum Bend Radius (inch): 1/2 minimum SAE bend radius
- Minimum Working Temperature Oil (F): -40
- Maximum Working Temperature Oil (F): +212
- Minimum Working Temperature Oil (C): -40
- Maximum Working Temperature Oil (C): +100
- Meets Industry Standards: SAE 100R17, J1942 / ISO 11237 1 TYPE R17 Constant Working Pressure / USCG HF / ABS
- Compatible Fittings: 43 series
- Overall Length: 82″
