Perko Dual Battery Switch w/Mounting Ring & Legs – Bulkhead Mount — Product

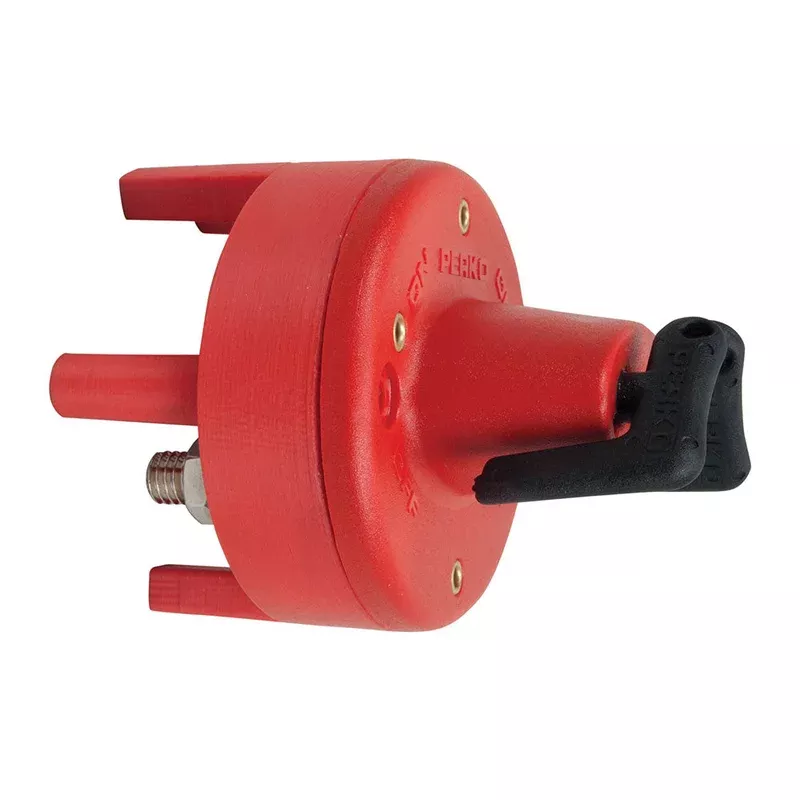

Dual Battery Switch w/Mounting Ring & Legs – Bulkhead MountThe Perko Dual Battery Selector Switch allows the addition of an extra battery for accessories. This switch provides the flexibility of selection between batteries or combined operation of both batteries in parallel for starting or charging. It can also serve as an emergency main disconnect switch in the event of an electrical problem. All models are make before break design and are ignition protected.Four switch positions: Both “Off”, Both “On”, Battery 1 “On”/Battery 2 “Off”, Battery 1 “Off”/Battery 2 “On”Materials & Finish
- Red polycarbonate polymer body
- Black polymer actuator key
- Nickel plated terminals
Features
- For two or more batteries
- Unique oval shape mounts in a round hole
- Removable actuator key
Technical Information
- Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start
- For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
- Ignition Protected
- Face Dimensions: 3-7/8″ x 3-1/4″
Ming’s Mark collapsible recliner has a 19mm powder-coated steel frame, an insulated cup holder to keep drinks cool, and a large storage bag (located on the back).
SKU: NVN-69972
MPN: 8521DP
UPC: 085226784224
