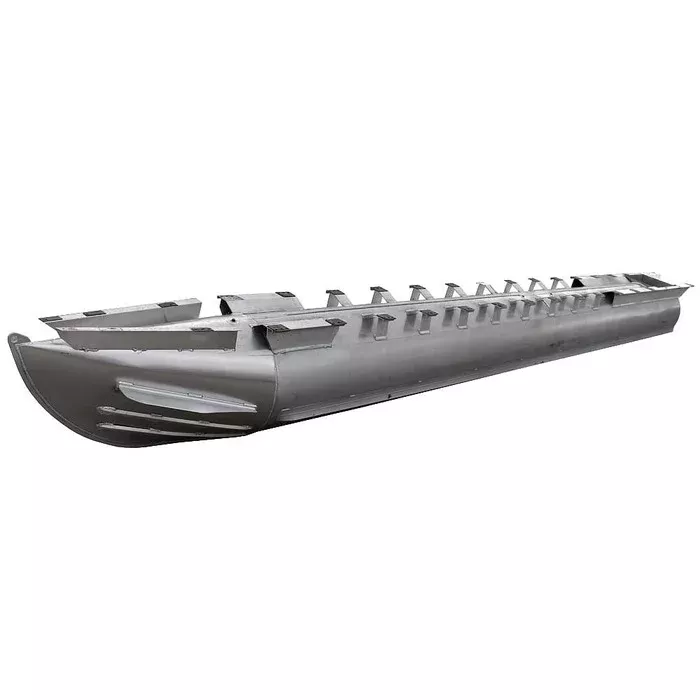

Boat part number 1084127 is a new 24 Foot x 25 inch diameter pontoon log float tube, part number and manufacturer unavailable.
This pontoon log has an 83 3/4″ wide bracket at the back of the log followed by a 6″ space. Then there are (8) 3 3/4″ wide brackets spaced 12 1/8″ apart. Then there is a 12 1/4″ space followed by a 19 3/4″ wide bracket. Then there is a 12 1/8″ space followed by a 34 7/8″ wide bracket at the front of the log.
Features (1) 218″ wide lifting strake on the starboard side of the log. Features a rear storage area measuring approximately 21 3/4″ L x 16″ W x 16 3/4″ D overall.
NOTE: Manufacturer calls this a 24 FT x 25″ pontoon log, however we measured this log to approximately be 24′ 2 3/8″ x 25″ overall.
Specifications:
- Part Manufacturer: Unavailable
- Part Number: Unavailable
- Material: Aluminum
- Manufacturer Dimensions: 24 FT x 25″
- Actual Dimensions: 24′ 2 3/8″ x 25″
- Bracket Width: 83 3/4″, (8) 3 3/4″, 19 3/4″, 34 7/8″
- Spacing Width: 6″, (9) 12 1/8″, 12 1/4″
- Storage Area: 21 3/4″ L x 16″ W x 16 3/4″ D
Due to the size of the product(s) selected, we are unable to offer shipping. Buyer must arrange their own shipping.
All sales on this item are final.
