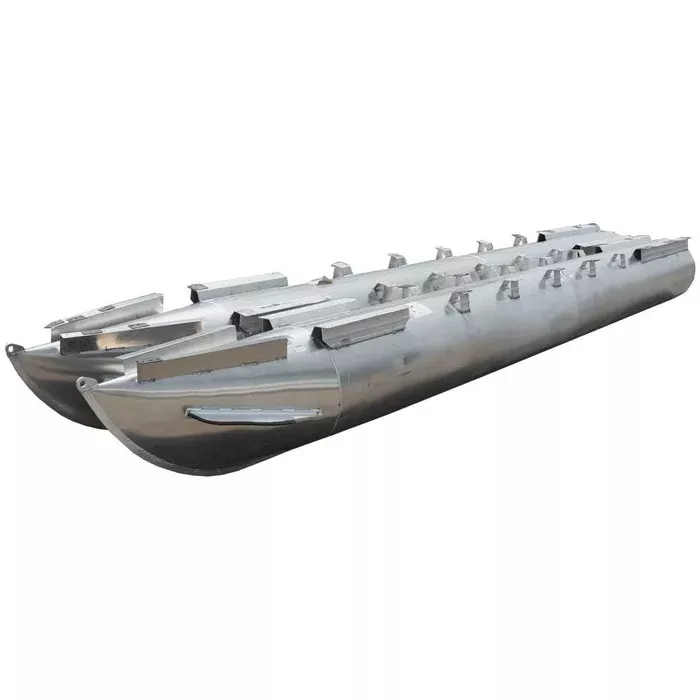

Boat part number 1107177 is a new set of (2) 22′ x 25″ pontoon log float tubes.
Log 1 has a port side lifting strake that measures approximately 205″ long. Log 2 has a starboard side lifting strake that measures approximately 205″ long. Please see photos for spacing and bracket order.
The manufacturer calls this a set of (2) 22′ x 25″ pontoon logs; however we measure each log to be 22 Feet 1″ long from tip to tip x 25″ diameter.
Note: These fully functional logs contain bent brackets and scratches due to storage and handling.
Specifications:
- Part Manufacturer: Unavailable
- Part Number: Unavailable
- Material: Aluminum
- Manufacturer Dimensions: 22′ x 25″
- Log 1 Actual Dimensions: 22′ 1″ Long
- Log 2 Actual Dimensions: 22′ 1″ Long
- Log 1 Bracket Lengths: (1) 48 1/2″ | (5) 3 3/4″ | (1) 27 3/4″ | (1) 30″
- Log 2 Bracket Lengths: (1) 48 1/2″ | (5) 3 3/4″ | (1) 27 3/4″ | (1) 30″
- Log 1 Bracket Spacing: (1) 14 1/4″ | (5) 20 1/4″ | (1) 8 1/2″
- Log 2 Bracket Spacing: (1) 14 1/4″ | (5) 20 1/4″ | (1) 8 1/2″
- Log 1 Lifting Strake: 205″ ; Port
- Log 2 Lifting Strake: 205″ ; Starboard
