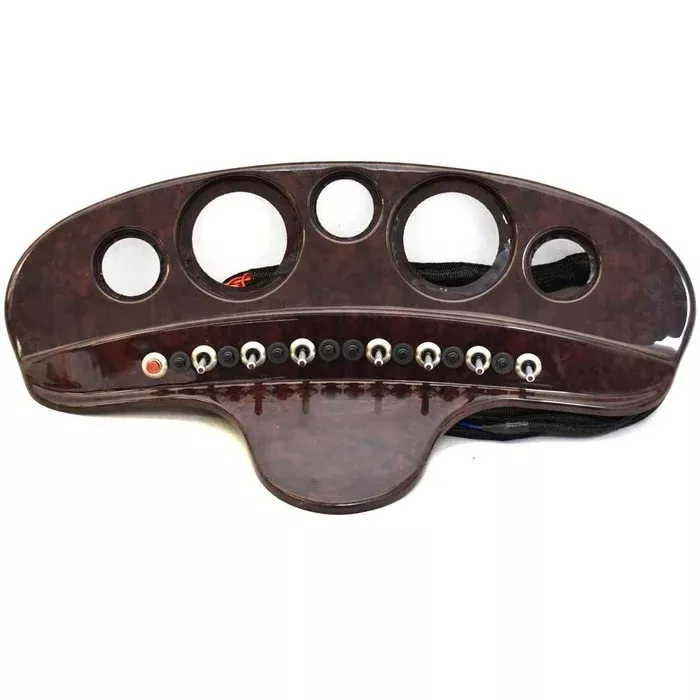

Boat part number 1077587 is a new dash panel for a Premier Pontoon Boat, part number 70002026 . Part manufactured by MNStar Technologies, part number 00-8009C . Model and year unavailable.
This dash panel is constructed out of marine plastic with a faux-woodgrain design. It measures approximately 23 7/8″ W x 8″ D x 12″ H overall. Features (2) 3 3/8″ Dia gauge cutouts and (3) 2″ Dia. gauge cutouts. Connects with (6) wire leads, (1) 11-pin male plug, (1) 15-pin male plug, (1) 3-pin female plug, (1) 4-pin female Deutsch connector, and (2) 3/16″ Dia. lugs.
The gauge and dash panel features the following:
- (1) Momentary ON/OFF Push Button-Horn
- (7) Illuminated ON/OFF Toggle Switches
- (5) 10A Push-To-Reset Circuit Breaker Buttons
- (3) 5A Push-To-Reset Circuit Breaker Buttons
Specifications:
- Boat Manufacturer: Premier Pontoons
- Part Number: 70002026
- Part Manufacturer: MNStar Technologies
- Part Number: 00-8009C
- Material: Plastic
- Color: Faux-Woodgrain
- Finish: Glossy
- Gauge Cutouts: (2) 3 3/8″ Dia / (3) 2″ Dia.
- Overall Dimensions: 23 7/8″ W x 8″ D x 11″ H
- Connection: (6) wire leads, (1) 12-pin male plug, (1) 15-pin male plug, (1) 3-pin female plug, (1) 4-pin female Deutsch connector, and (2) 3/16″ Dia. lugs
