Boat part number 1064724 is a new Premier Pontoons aerator switch panel with harness from MNStar Technologies , part number 00-8208 . May be used in other applications.

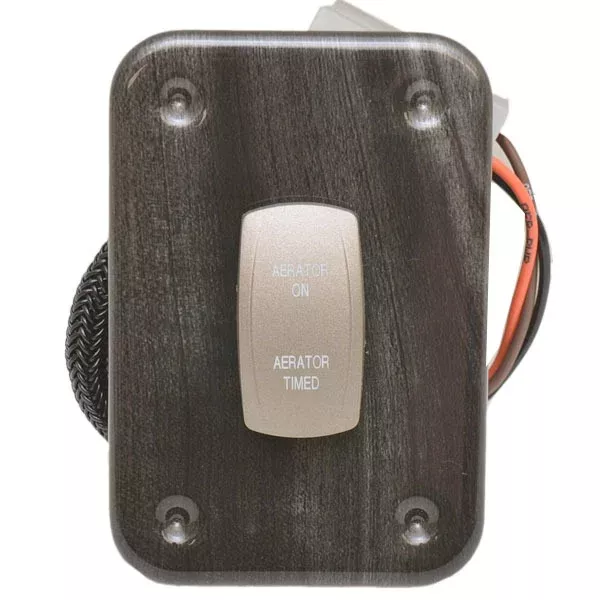

This aerator switch plate and switch measure approximately 4 5/8″ L x 3 1/8″ W x 1 3/4″ D. It is constructed from gray-wood grain marine grade plastic. The panel comes with a 20A, 3 position Carling Switch installed. The switch is marked “AERATOR ON | AERATOR TIMED”. The harness attached to the back is approximately 28 1/2″ in length and has (1) 3 pin male, and (1) 4 pin female plug. The plate has (4) mounting holes that may need to be drilled out prior to mounting.
Specifications:
- Boat Manufacturer: Premier
- Part Number: Unavailable
- Part Manufacturer: MNStar Technologies
- Part Number:00-8208
- Material: Marine Grade Plastic
- Color: Graywood
- Electrical: 20A 12V
- Overall Dimensions: 4 5/8″ L X 3 1/8″ W X 1 3/4″ D
- Mount(s): (4) Mounting Holes
- Connection(s): (1) 3 Pin Male (1) 4 Pin Female
