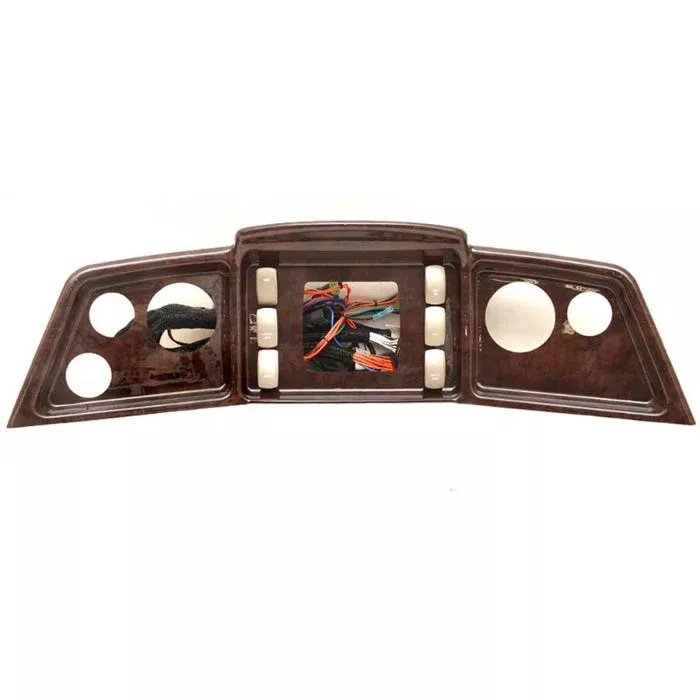

Boat part number 1077594 is a new blank rocker switch panel with wiring harness from Minstar, part number 00-8207 .
This switch panel is constructed out of marine grade plastic with a woodgrain glossy finish. It measures approximately 31 3/8″ W x 8 5/8″ H overall.
Manufacturer tag reads: 00-8207 REV. A ECLIPSE 6 SW PANEL HARNESS
Features the following illuminated switches.
- (1) Illuminated Momentary On/Off – Horn Rocker Switch 20A
- (1) Illuminated On/Off/On – Dock LTS/Courtesy Lights 20A Rocker Switch 20A
- (1) Illuminated On/Off/On – ACC 1/Stereo Rocker Switch 20A
- (1) Illuminated On/Off/On – NAV LTS/ANCH LTS Rocker Switch 20A
- (1) Illuminated On/Off/On – ACC 2/ACC 3 Rocker Switch 20A
- (1) Illuminated On/Off/On – Aerator On/Aerator Timed Rocker Switch 20A
Host the following cutouts:
- (3) 2 1/8″ Dia. – Gauge Cutouts
- (2) 3 3/8″ Dia. – Gauge Cutouts
- (1) 4 3/4″ W x 4 3/8″ H – Display Cutout
Connections:
- (7) Single Female Connectors w/Boot
- (1) 2-Pin Female Connector (Only 1-Pin Active)
- (1) 4-Pin Female Connector (Only 3-Pins Active)
- (2) 3-Pin Male Connector
- (2) 12-Pin Female Connector (Only 11-Pins Active)
- (1) 12-Pin Male Connector
- (1) 12V Receptacle Port
Specifications:
- Part Manufacturer: Minstar
- Part Number: 00-8207
- Material: Plastic
- Color: Woodgrain
- Finish: Glossy
- Overall Dimensions: 31 3/8″ W x 8 5/8″ H
