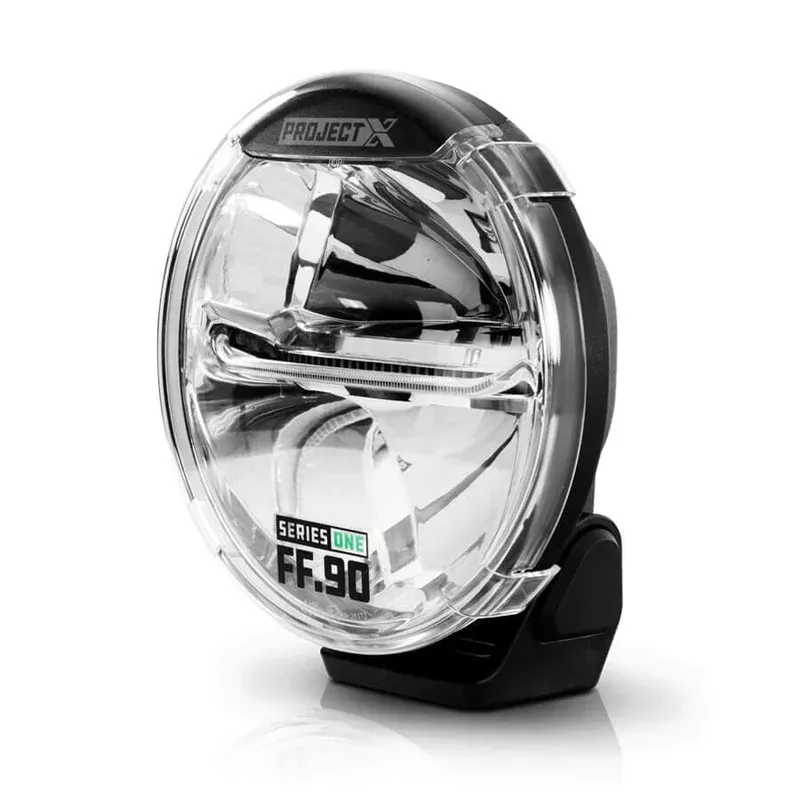

Connect with the Wild with the Project X Offroad Series One FF.90 Free Form 9 Inch LED Driving Light (Spot Beam) from Nomadic Supply Company®. The Series One utilizes enhanced free-form optics to capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most.
Project X Offroad Series One FF.90 Free Form 9 Inch LED Driving Light (Spot Beam) Features:
- Enhanced Free From Optic Drive Technology – Enhanced free-form optics capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most.
- Powered by CREE The very latest in Cree XHP50.2 L.E.D chip sets produce an extremely efficient yet powerful white light output (5000 degrees K) and 3,800 raw lumens (1,663 effective) per light.
- Superior Optics – The proof is in the data – the Series One’s unique design creates a superior optic in a lightweight package that will perform in any condition.
- LED Front Position Light Pipe– Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety.
- Customizable Appearance – Customize the look of your Series One FF.70s with your choice of 2 glare shield caps in Black or PROJECT X Green
Project X Offroad Series One FF.90 Free Form 9 Inch LED Driving Light (Spot Beam) Specifications:
Power
- Input Voltage: 9-33V
- LED Power: 45W
- Current Draw at 12V: 3A
- Operating Temp: -40 degrees F to 149 degrees F
- Heat Management: Active Thermal Management System (ATMS)
- Protection: Reverse Polarity, Protection
- EMC: ECE R10
LEDs – LED Type: 15 Watt XHP50.2, Cree LEDsLight Pattern: SpotSize 9.0 InchLumens
- Color Temp: 5000 degrees K
- Color Rendering Index: 70
- Raw Lumens: 5,700
- Effective Lumens: 2,500
- Beam Length (1 lamp): 1 lux at 1574 Feet
- Beam Length (2 lamps): 1 lux at 2230 Feet
- Beam Width (1 lamp): 1 lux at 78 Feet
- Beam Width (2 lamps): 1 lux at 206 Feet
Construction
- Housing: Fiber Reinforced Polymer
- Lens: Hard coated Polycarbonate
- Hardware: Stainless Steel
- IP Rating: IP67
- Weight: 2.42 lbs
More Information:
- Black and PROJECT X Green Bulb Quantity: 3
- Bulb Technology: LED
- Connector Gender: Male
- Connector Quantity: 1
- Material: Fiber Reinforced Polymer
- Effective Lumens: 2500 EMC: ECE R10
- Hardware Included: Yes
- Height: 9.8 Inch.
- Housing Color: Black
- Housing Finish: Matte
- IP Rating: IP67 Lamp
- Current Draw at 12V: 4.9
- Lens Color: Clear
- Lens Material: Hard coated Polycarbonate
- Mounting Hole Quantity: 2
- Light Current Draw at 12V: 0.13 Amps
- Protection: Reverse Polarity
- Protection Terminal Gender: Female
- Terminal Quantity: 1
- Terminal Type: Deutsch DT 3-pin
- Total Current Draw at 12V: 5 Wattage Draw at 12V DC: Driving Light – 62 Watts, Position – 1.8 Watts
- Wire Quantity: 3
- Wiring Harness Included: Y
- Width: 5.3 IN.
