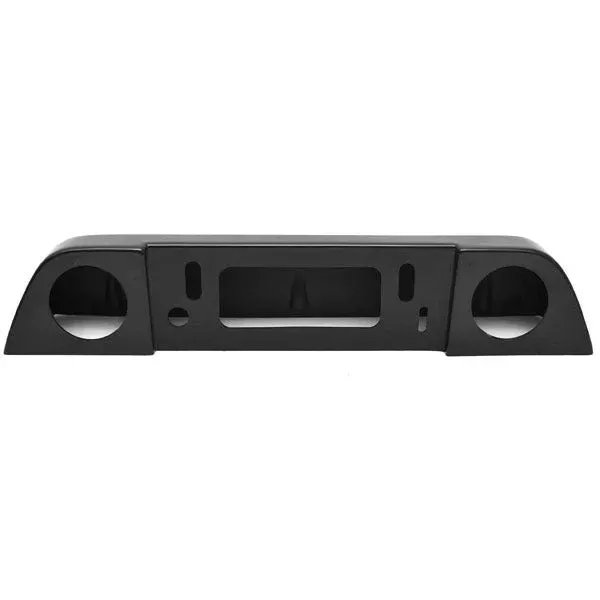

Boat part number 7101941 is a new blank cup holder panel from Jet Technologies, part number J202898 . Commonly found on Ranger Boats, part number 7202898 .
Constructed of Black marine grade plastic with a glossy finish, this panel measures approximately 28″ L x 5 1/4 D” x 5 1/8″ H overall. Panel hosts (3) 3/16″ dia. holes for mounting set apart approximately 9 1/2″ center on center, and located on the bottom of the panel.
Contains the following cut outs, as shown in pictures:
- (2) 3 1/2″ Dia. (for cup holder inserts)
- (2) 3/4″ x 1 7/8″ Oval
- (1) 3/8″ x 1 3/8″ Oval
- (1) 7 1/2″ L x 3″ W
Specifications:
- Boat Manufacturer: Ranger Boats
- Part Number: 7202898
- Part Manufacturer: Jet Technologies
- Part Number: J202898
- Materials: Plastic
- Color: Black
- Finish: Glossy
- Overall Dimensions: 28″ L x 5 1/4 D” x 5 1/8″ H
- Cutouts: (2) 3 1/2″ Dia. (for cup holder inserts)
- (2) 3/4″ x 1 7/8″ Oval
- (1) 3/8″ x 1 3/8″ Oval
- (1) 7 1/2″ L x 3″ wide
- Mounts: (3) 3/16″ dia. Holes, Set Apart Approximately 9 1/2″ Center On Center, Located On Bottom Of Panel.
