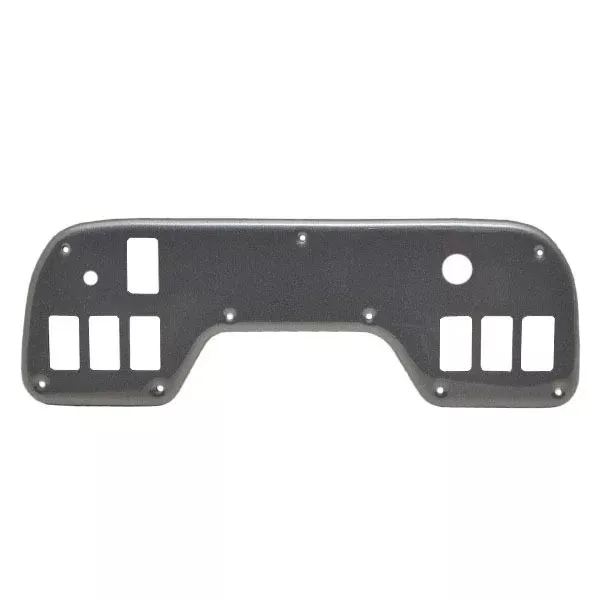

Boat part number 7100145 is a new blank switch panel, from Ranger Boats, part number 7202128DGM .
Constructed of dark metallic gray plastic this panel measures approximately 14 3/4″ L x 5″ W x 1/4″ thick overall. Uses(9) 1/4″ dia. mounting holes, set apart approximately 3 1/8″ x 3 3/4″ x 6 1/8″ x 2 5/8″ x 3 5/8″ center to center.
Features the following cutouts:
- (7) 1 1/2″ x 7/8″ W (Rectangular)
- (1) 3/8″ Dia.
- (1) 3/4″ (Dia. Off-Shaped)
Specifications:
- Boat Manufacturer: Ranger
- Model/Year: Unavailable
- Part Number: 7202128DGM
- Material: Plastic
- Colors: Dark Gray
- Finish: Metallic
- Overall Dimensions: 14 3/4″ L x 5″ W x 1/4″ Thick
- Mounts: (9) 1/4″ Dia. Holes Set Apart Approximately 3 1/8″ x 3 3/4″ x 6 1/8″ x 2 5/8″ x 3 5/8″ CTC
