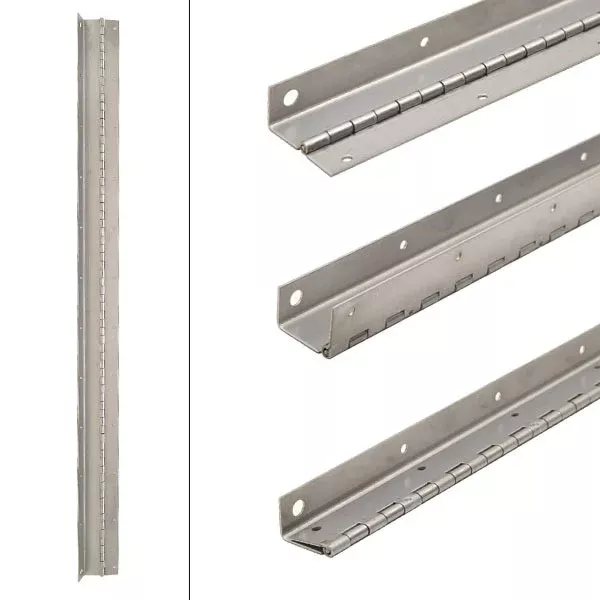

Boat part number 7101107 is a new 16 gauge angled piano hinge from ranger boats, part number 9847113 .
This hinge is constructed out of polished stainless steel, and measures approximately 34″ H x 2 1/4″ W completely opened overall. The hinged side is 1 1/8″ wide, the angled side 7/8″ wide. It has a 1/8″ diameter pin. Mounts with (12) 3/16″ diameter holes set apart 3″ center to center.
Specifications:
- Boat Manufacturer: Ranger Boats
- Part Number: 9847113
- Material: Stainless Steel
- Gauge: 16
- Pin: 1/8″ Dia.
- Finish: Polished
- Overall Dimensions: 34″ H x 2 1/4″ W
- Mounts: (12) 3/16″ diameter holes set apart 3″ CTC
