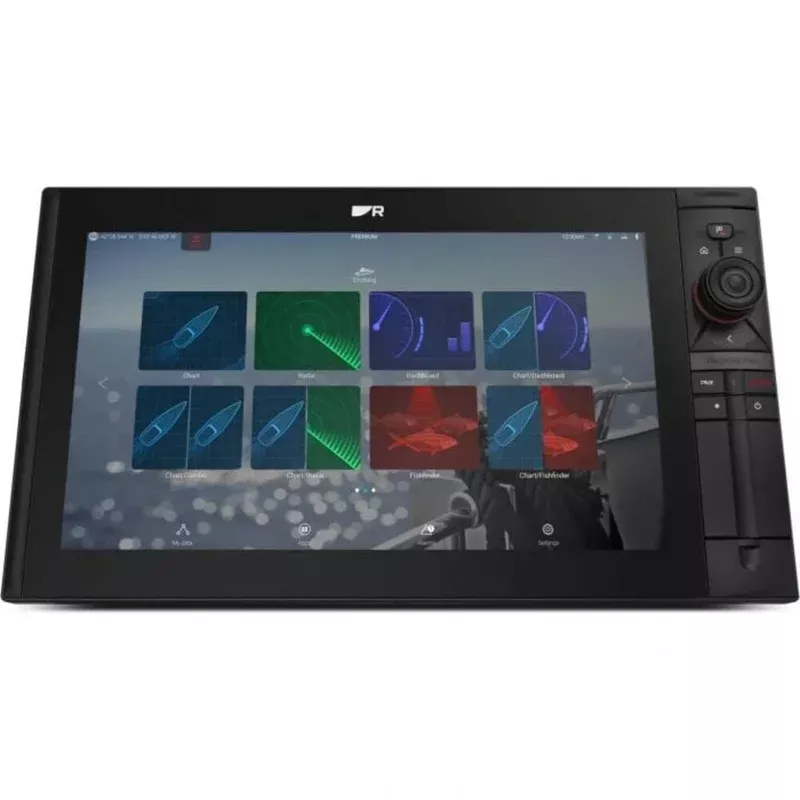

The Raymarine Axiom 2 Pro S 16″ MFD Chartplotter w/ CHIRP Sonar (E70657) from Nomadic Supply Company® combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system.Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. The Raymarine Axiom 2 Pro S 16″ MFD Chartplotter w/ CHIRP Sonar (E70657) features built-in single channel High CHIRP sonar — the ideal sonar solution for reliable depth sounding and underwater exploration.
Raymarine Axiom 2 Pro S 16″ MFD Chartplotter w/ CHIRP Sonar (E70657) Features:
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
- Integrated High CHIRP sonar with transom, in-hull, and low-profile through-hull CPT-S series transducer options
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems
Raymarine Axiom 2 Pro S 16″ MFD Chartplotter w/ CHIRP Sonar (E70657) Specifications:
- Connections:
- Digital Video & Audio Out Connection: HDMI Out Micro connector type D
- External GPS Antenna Connection: TNC connector
- Accessory connection: USB Micro B (rear–charging, external storage device or RCR-SD/USB Accessory (A80440))
- Ethernet connection: RayNet (10/100/1,000 Mbits/s) x2
- External storage: MicroSD card slot x2 (front)
- NMEA 2000 connection: DeviceNet connector
- Analog video connections: BNC Analog video input (on power cable)
- Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
- Transducer connection: 25-pin RealVision type connector (requires adaptor cable)
- Audio connections: Left and Right RCA connectors via Power/Video/Audio cable
- GPS: GNSS compatibility: GPS, Galileo, GLONASS, Beidou
- Sonar:
- Channels: CHIRP conical sonar (Uses CPT-S Transducers with adapter cable A80490)
- Depth range: 0.6 – 274 m (2′ – 900′) Depending on water conditions
- Illumination: 1200 nits / 1200 cd/m2
- Internal storage: 64 GB Solid State
Raymarine Axiom 2 Pro S 16″ MFD Chartplotter w/ CHIRP Sonar (E70657) Includes:
- Display unit
- User Configurable Keypad
- Suncover
- Gasket
- Trunnion knobs (x 2)
- Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- DeviceNet to SeaTalkng adaptor cable 1m (3.28′)
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56′)
- Mounting fixings x4
- Documentation
- Power/Video/Audio cable 1.5 m (4.92′)
Raymarine Axiom 2 Pro S 16″ MFD Chartplotter w/ CHIRP Sonar (E70657) Documents:
Raymarine Axiom 2 Pro S 16″ MFD Chartplotter w/ CHIRP Sonar (E70657) Owner’s Manual
