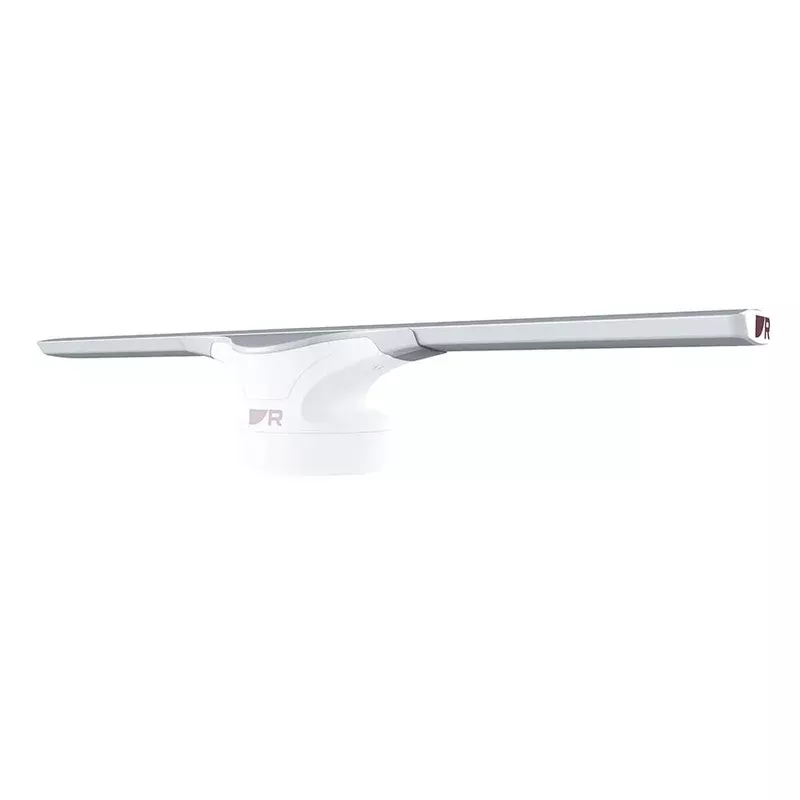

With a 55-watt solid-state transmitter, the Raymarine Cyclone 6 Foot Solid State Open Array Marine Radar (E70630)fromNomadic Supply Company® delivers excellent target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology. The power output of Cyclone is equivalent to a 6kW magnetron radar and gives Cyclone a range of up to 72 nautical miles.Cyclone radars feature innovative detection capabilities, including Doppler target tracking, RangeFusion™ technology, Bird Mode, and high-speed 60 rpm imaging.Raymarine’s Cyclone product line blends cutting-edge design, high-performance CHIRP pulse compression technology, and innovative features to give boaters the very best in situational awareness.
Aircraft wing inspired
Engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship-borne radar.
Low profile
At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
Clean installation
Innovative pedestal design conceals cable connections for a cleaner installation. Built in cable gland to allow sleeker design configuration to boat designers.
Enhanced Situational Awareness
RangeFusion™ technology
Available exclusively on Cyclone radars, RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
Doppler target tracking
Available exclusively on Quantum 2 radomes and Cyclone open array radars, Doppler allows the radar to instantly detect targets in motion and display them in a unique color palette. Inbound targets are red while outbound targets are green for improved awareness in high-traffic situations.
Raymarine Cyclone 6 Foot Solid State Open Array Marine Radar (E70630) Documents:
Raymarine Cyclone 6 Foot Solid State Open Array Marine Radar (E70630) Brochure
