Boat part number 1118812 is a new gauge panel for Regal Boats, part number 281536 .
This panel features the following gauges:
- (1) 6,000 RPM Tachometer | P/N: TCH312A | Set up for 2/3/4/5/6 Pole and 4/6/8 Cylinder Engines
- (1) Multifunction (Fuel / Volt / Oil Pressure / Temp) | P/N: GF0413A
- (1) Depth Finder Gauge | P/N: DS0111A
- (1) Trim Gauge | P/N: GP8240A | Set up for Mercury, and Yamaha Engines
- (1) 65 MPH Speedometer | P/N: SE8044B

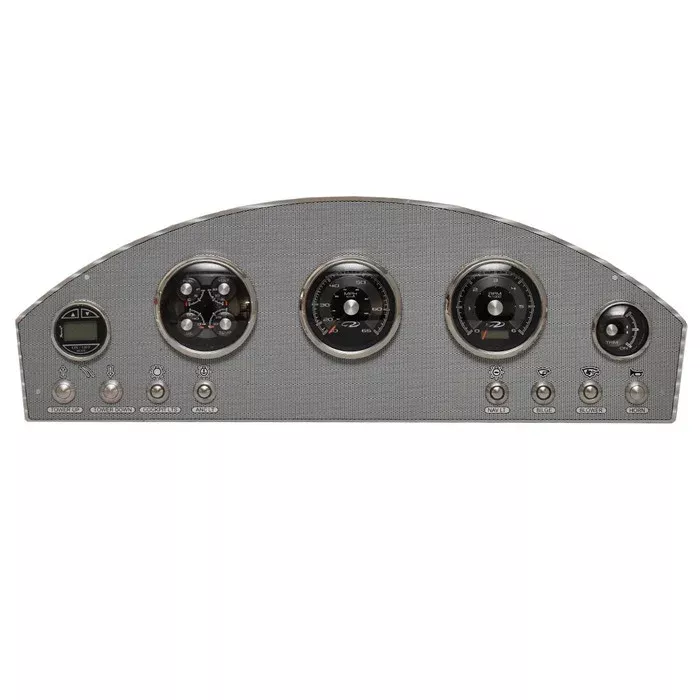

Measures approximately 24 1/2″ L x 8 3/8″ H overall. This gauge panel features (5) pre-installed Faria gauges, with Regal Boats branding on two of the larger gauges. Each of these clear halogen-illuminated gauges feature a silver colored bezel, domed lens, black and silver colored face, white lettering numerals and accents, and orange-tipped black needles. Mounts with (4) 1/8″ Dia. mounting holes. Panel also features (8) push buttons, of which (3) are momentary and (5) are on/off.
Note: Gauges have debris under the lenses, see photos for examples.
Specifications:
- Boat Manufacturer: Regal Boats
- Part Number: 281536
- Material: Aluminum
- Color: Silver / Black
- Overall Dimensions: 24 1/2″ L x 8 3/8″ H
- Mounts: (4) 1/8″ Dia. Holes
