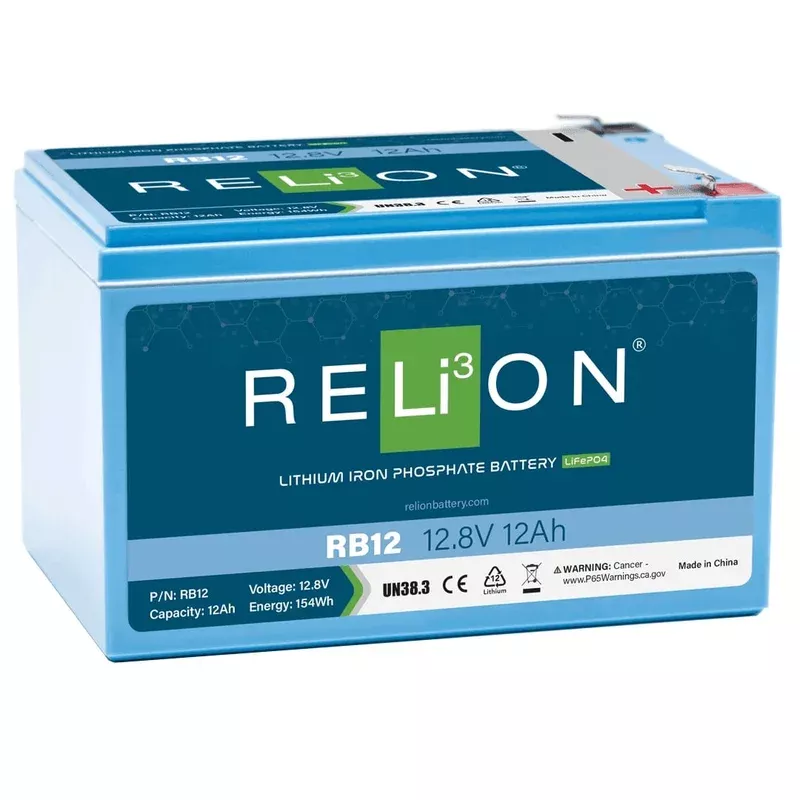

The RELiON RB12 12V 12Ah LiFePO4 Lithium Battery fromNomadic Supply Company® is a deep cycle lithium iron phosphate (LiFePO4) battery. It has twice the power, half the weight and lasts much longer than its lead-acid counterparts. This powerful lithium battery packs a punch, giving you the perfect amount of power for full-day fishing and outdoor recreation adventures. The RELiON RB12 12V 12Ah LiFePO4 Lithium Battery is commonly used in the following applications: fish finders, flashers and boating electronics, ice fishing, camping, scooters, solar and emergency lighting, robotics, remote power, UPS, security backup systems, telecommunications, and other deep cycle applications.Not all lithium batteries are created equal. All RELiON Batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS ensures a long lifetime, safe handling – and high-accuracy State of Charge (SOC) calculations.Lithium Iron Phosphate (LiFePO4); 12.8 Volt; 12 AH Capacity; F2 Flat Blade Top Terminals; 5.9 Inch Length; 3.9 Inch Width; 4 Inch Height; Deep Cycle Battery; ABS Case Material; IP66 Enclosure Protection; UN38.3 And CE Certified
RELiON RB12 12V 12Ah LiFePO4 Lithium Battery Features:
- Lighter Weight: 50-60% less weight than lead-acid equivalent
- Longer Life: RELiON lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80% of rated capacity after 2,000 cycles
- Constant Power: Full power available throughout discharge. Voltage does not drop like lead-acid
- More Usable Capacity: Lithium batteries allow you to use 100% of their capacity, regardless of the rate of discharge
- Maintenance-Free: Plug, play and charge. No watering
Maintenance FreePlug, play, and charge. No watering, no corrosion.Easy To TransportCompared to other battery chemistries, RELiON LiFePO4 batteries provide the same or greater energy at less than half the weight and size. This means more flexibility and ease of use!Long LifeRELiON lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80% of the rated capacity after 3,500 cycles.Fast ChargingRELiON lithium batteries charge much faster than traditional lead-acid batteries, and they’re packed with more usable energy and up to 10 times longer life so you’re always ready to go!Partial State of Charge TolerantPartial charging does not affect performance quality or battery life. A low self-discharge rate means worry-free storage so even occasional users can be assured of reliable performance.Constant PowerFull power available throughout discharge. Voltage does not drop like lead-acid.Eco-Friendly & SafeRELiON lithium batteries are the ultimate clean energy. No gassing, no fumes, and no pollution. Enjoy reliable power, while protecting the environment, using these non-hazardous batteries.
RELiON RB12 12V 12Ah LiFePO4 Lithium Battery Specifications:
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 12 Ah |
| Energy | 128 Wh |
| Resistance | ≤90 mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Batteries Connected in Series | 1 |
| MECHANICAL SPECIFICATIONS | |
|---|---|
| Dimensions (L x W x H) | 5.9 x 3.9 x 4.0” (151 x 98 x 101 mm) |
| Weight | 3.6 lbs (1.65 kg) |
| Terminal Type | F2 |
| Case Material | ABS |
| Enclosure Protection | IP66 |
| Cell Type | Cylindrical |
| Chemistry | LiFePO4 |
| DISCHARGE SPECIFICATIONS | |
|---|---|
| Maximum Continuous Discharge Current | 10 A |
| Peak Discharge Current | 20 A (7.5 s ±2.5 s) |
| Discharge Over-Current Protection | 30 A (±5 A) (10 ±5 ms) |
| Recommended Low Voltage Disconnect | 11.0 V |
| Discharge Under-Voltage Protection | 8.0 V (2.0 ±0.08 vpc) (100 ±50 ms) |
| Reconnect Voltage | 10.0 V (2.5 ±0.1 vpc) |
| Short Circuit Protection Response Time | 200-500 µs |
| CHARGE SPECIFICATIONS | |
|---|---|
| Recommended Charge Current | 0.5 A – 5 A |
| Maximum Continuous Charge Current | 10 A |
| Charge Current 32°F to 14°F (0 to -10°C) | ≤0.1 C (1 A) |
| Charge Current 14°F to -4°F (-10 to -20°C) | ≤0.05 C (0.5 A) |
| Recommended Charge Voltage | 14.2 V – 14.6 V |
| BMS Charge Voltage Cut-Off | 15.6 V (3.9 ±0.025 vpc) |
| (1.0 ±0.5 s) | |
| Reconnect Voltage | 15.2 V (3.8 ±0.05 vpc) |
| TEMPERATURESPECIFICATIONS | |
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature* | -4 to 113 ºF (-20 to 45 ºC) |
| Recommended Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
| *Refer to charge currents below 32°F (0°C) |
| COMPLIANCE SPECIFICATIONS | |
|---|---|
| Certifications | UKCA & CE (battery) |
| UN38.3 (battery) | |
| UL1642 (cells) (File MH64523) | |
| IEC62133 (cells) | |
| Shipping Classification | UN 3480, CLASS 9 |
RELiON RB12 12V 12Ah LiFePO4 Lithium Battery Documents:
RELiON RB100 12V 100Ah LiFePO4 Lithium Battery Owner’s ManualRELiON LiFePO4 Lithium Battery Safety Data SheetRELiON LiFePO4 Product Specifications GuideRELiON LiFePO4 Lithium Battery Charging InstructionsRELiON LiFePO4 Lithium Battery Safety Document
