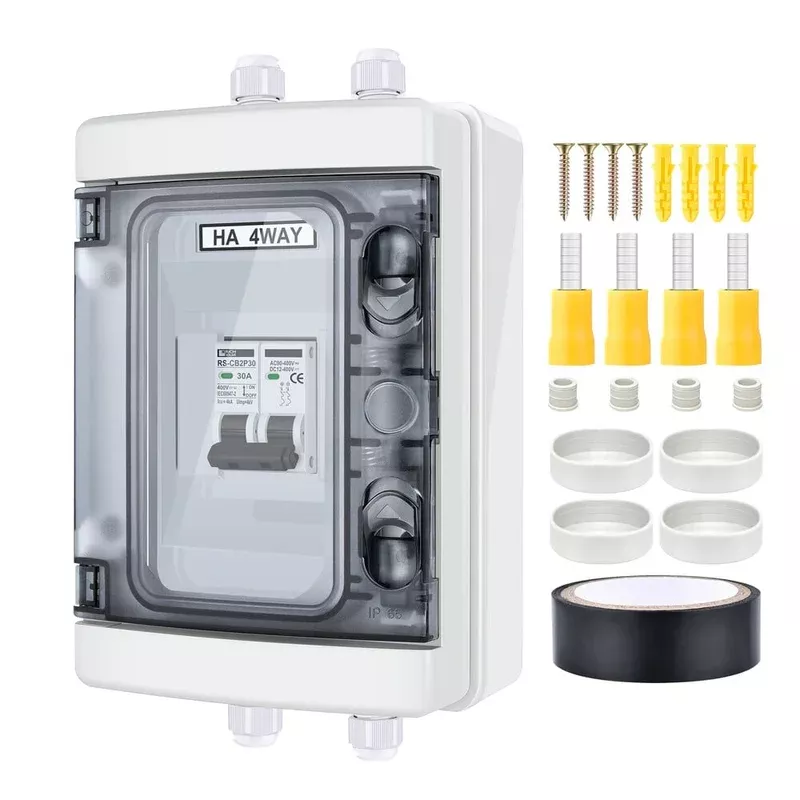

The Rich Solar 2 Pole Outdoor Circuit Breaker Box (RS-CB2P30) from Nomadic Supply Company® is a dual-pole outdoor circuit breaker box rated at 30 amps, designed for safe DC power distribution in solar panel arrays and battery systems. The weatherproof enclosure protects against moisture, dust, and UV exposure in outdoor installations. This breaker box provides reliable overcurrent protection and manual disconnect capability for off-grid solar, RV, and marine applications.
Rich Solar 2 Pole Outdoor Circuit Breaker Box (RS-CB2P30) Features:
- Dual-Pole Protection. Two-pole configuration provides simultaneous overcurrent protection on both positive and negative conductors for complete circuit safety.
- Weatherproof Enclosure. Outdoor-rated housing protects internal breaker components from rain, dust, UV radiation, and extreme temperatures.
- 30A Rated Breakers. Pre-installed dual 30-amp breakers sized for solar PV arrays, battery banks, and DC power distribution systems.
- Manual Disconnect Capability. Provides a safe, accessible means to completely isolate solar arrays or battery banks during maintenance or emergencies.
- Easy Panel Installation. Standard mounting pattern and pre-wired terminals simplify installation on walls, posts, or equipment enclosures.
Rich Solar 2 Pole Outdoor Circuit Breaker Box (RS-CB2P30) Specifications:
- Rated Current: 30/40/60/80/120A
- Breaking Capacity: 4000A
- Rated Voltage: AC90-400; DC12-400V
- Circumstance Temperature: 23°F ~ + 104°F
- Weight: 2.0 lbs
