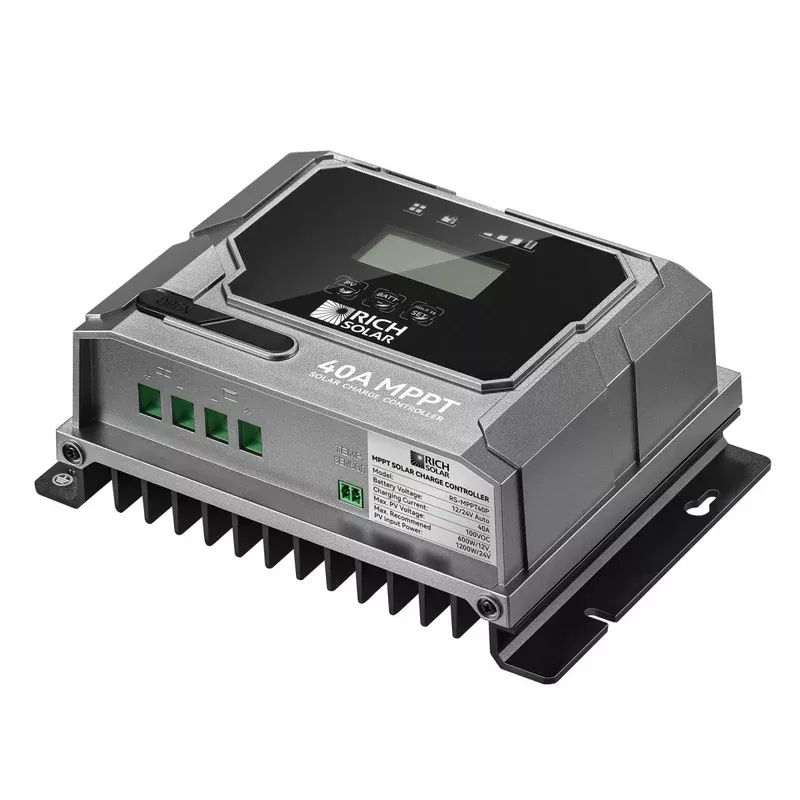

Maximize solar harvesting for mid-size arrays with the Rich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P) from Nomadic Supply Company®. Supporting up to 520 watts of solar input on 12V systems or 1040 watts on 24V systems, the Rich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P) uses advanced MPPT algorithms to squeeze maximum energy from every panel. With a built-in LCD display, multi-stage battery charging profiles, and robust thermal management, this controller is ideal for RV, marine, and cabin solar installations.
Rich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P) Features:
- 40A MPPT Charging. Delivers up to 40 amps of optimized charging current using Maximum Power Point Tracking for maximum solar harvest.
- Up to 98% Conversion Efficiency. Industry-leading efficiency ensures minimal energy loss between your solar array and battery bank.
- 12V/24V Auto-Detection. Automatically senses battery voltage and configures output accordingly for seamless installation.
- 100V Max PV Input. Accepts up to 100V DC open circuit voltage, supporting up to 600W (12V) or 1,200W (24V) of solar input.
- MPPT Tracking Above 99.5%. Advanced algorithm continuously adjusts to changing light conditions for peak power extraction.
- Wide Battery Compatibility. Supports Gel, AGM, Flooded, Calcium, LiFePO4, LTO, and LCO battery chemistries.
Rich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P) Includes:
- 1 x Rich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P)
Rich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P) Specifications:
- System Voltage: 12/24V Auto
- Max Charging Current: 40A
- Max PV Open Circuit Voltage: 100V DC
- Recommended PV Power: 600W (12V) / 1,200W (24V)
- Charge Efficiency: ≤98%
- MPPT Tracking Efficiency:>99.5%
- IP Rating: IP43 (board), IP22 (connections)
- Dimensions: 7.7 x 5.5 x 2.9 inches
- Weight: 5.0 lbs
Rich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P) Documents:
Rich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P) ManualRich Solar Bravo 40 Amp MPPT Solar Charge Controller (RS-MPPT40P) Specification
