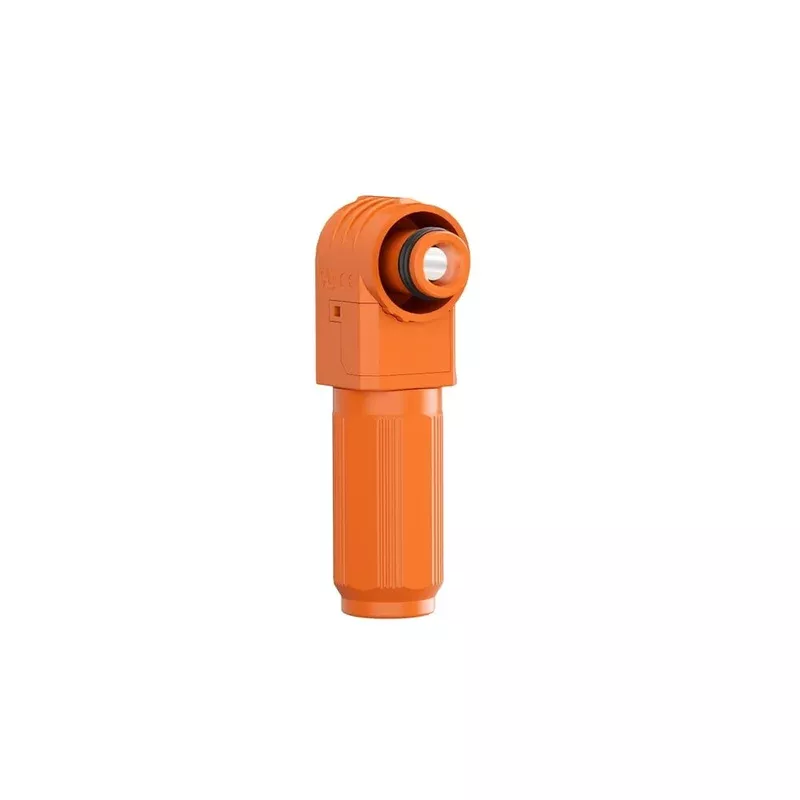

The Rich Solar Energy Storage Connector 120A 4AWG Wall-Mount DC Connector (RS-8002) from Nomadic Supply Company® is a high-amperage DC power connector designed for quick, secure connections between battery banks, inverters, and energy storage systems. The wall-mount design provides a permanent, accessible connection point rated for continuous high-current operation. Color-coded terminals and keyed connectors prevent reverse polarity mistakes during installation.
Rich Solar Energy Storage Connector 120A 4AWG Wall-Mount DC Connector (RS-8002) Features:
- Quality Construction. Built with premium materials designed for the demands of RV, marine, and off-grid solar installations.
- System Compatible. Designed to integrate seamlessly with Rich Solar panels, controllers, batteries, and inverters.
- Easy Installation. Clear markings and standard connections simplify installation with basic tools and minimal wiring experience.
- Weather Resistant. Durable materials and sealed connections withstand outdoor exposure to rain, sun, and temperature extremes.
- Warranty Backed. Covered by Rich Solar manufacturer warranty for dependable, long-term performance.
Rich Solar Energy Storage Connector 120A 4AWG Wall-Mount DC Connector (RS-8002) Specifications:
- Dual-size contacts: Different positive and negative pin sizes prevent reverse connection.
- Wide temperature range: Reliable operation from -40°F to 257°F.
- Rated Voltage: 1500 V DC
- Rated Current: 120 A
- Dielectric Withstand Voltage: 6800 V/min
- Compatible Cable: 4AWG / 25 mm²
- Recommended Strip Length: 13-14 mm
- IP Rating: IP67 (Mated)
- Operating Temperature: -40°F to 257°F (-40°C to +125°C)
- Dimensions: 2.60 × 0.63 in (66 × 16 mm)
