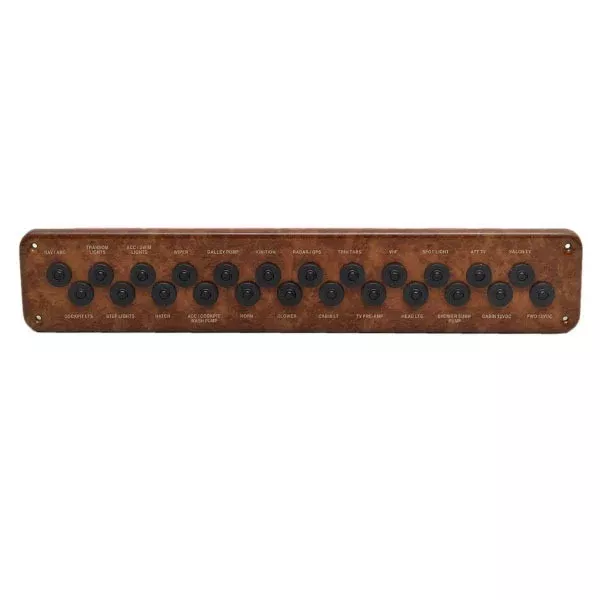

Boat part number 1062574 is a new push button breaker panel for a Rinker 280 Express Cruiser, part number unavailable.
This breaker panel is constructed of marine grade plastic with a light faux woodgrain pattern. Measures approximately 16 1/8″ L x 3″ H overall. Mounts (4) 1/8″ diameter holes spaced approximately 15 1/8″ x 2 1/8″ apart center on center. Features (1) terminal block, (2) single spade male, (1) 15-pin male and (1) 12-pin male connectors.
This panel features the following pre-labeled push button breakers:
- (1) Nav / ANC
- (1) Transom Lights
- (1) ACC / Swim Lights
- (1) Wiper
- (1) Galley Pump
- (1) Ignition
- (1) Radar / GPS
- (1) Trim Tabs
- (1) VHF
- (1) Spot Light
- (1) AFT TV
- (1) Salon TV
- (1) Cockpit LTS
- (1) Step Lights
- (1) Hatch
- (1) ACC/Cockpit Wash Pump
- (1) Horn
- (1) Blower
- (1) Cabin LT
- (1) TV Pre-Amp
- (1) Head LTS
- (1) Shower Sump Pump
- (1) Cabin 12VDC
- (1) FWD 12VDC
Specifications:
- Boat Manufacturer: Rinker
- Model: 280 Express Cruiser
- Part Number: Unavailable
- Material: Marine Grade Plastic
- Colors: Light Faux Woodgrain
- Overall Dimensions: 16 1/8″ L x 3″ H
- Mounts: (4) 1/8″ Dia. Holes Spaced 15 1/8″ x 2 1/8″ Apart CTC
- Connections: (2) Single Spade Male | (1) 15-Pin Male | (1) 12-Pin Male
