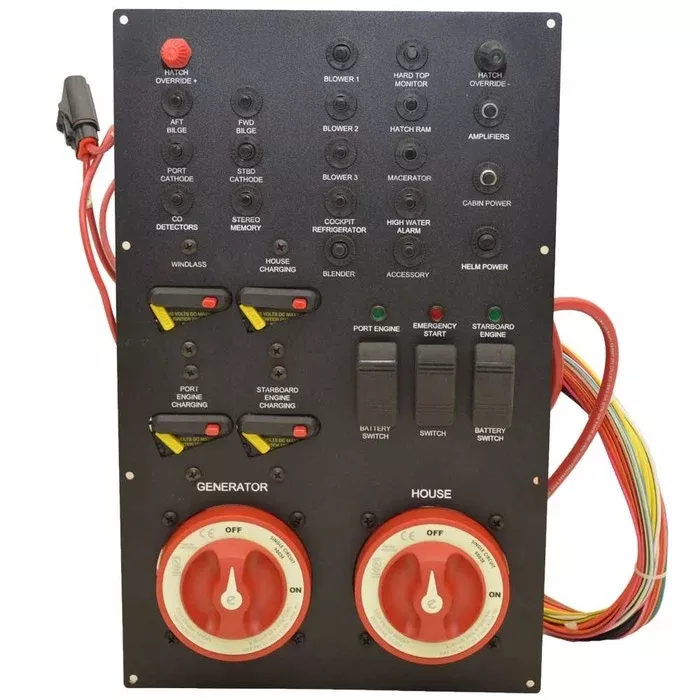

Boat part number 1074256 is a new breaker battery switch selector panel for a 360 Express Cruiser Rinker Boats, part number 2230212 . Manufactured by BEP, part number 63438 .
Constructed out of black aluminum with a textured finish, this panel measures approximately 16″ H x 10″ W x 5 1/2″ D overall. Hosts (8) 3/16″ Dia. mounting holes set around the perimeter. Hosts (2) 12-Pin Female and (1) 6-Pin Female connections. Battery cable not included.
Features (2) Blue Sea Systems battery switches, (1) Hatch Override + knob, and (1) Hatch Override – knob. This panel also features (4) 48 volt DC circuit breakers for the port engine charging, starboard engine charging, house charging, and windlass.
This panel hosts the following pre-installed push button breakers:
- “Aft Bilge”
- “Fwd Bilge”
- “Port Cathode”
- “Starboard Cathode”
- “Stereo Memory”
- “CO Detectors”
- (3) “Blower”
- “Blender”
- “Cockpit Refrigerator”
- “Hard Top Monitor”
- “Hatch Rim”
- “Macerator”
- “Accessory”
- “Amplifiers”
- “Cabin Power”
- “Helm Power”
This panel also hosts the following (3) rocker switches:
- On/Off/On “Port Engine Battery Switch”
- Momentary On/Off “Emergency Start Switch”
- On/Off/On “Starboard Engine Battery Switch”
Sold as a single.
Specifications
- Boat Manufacturer: Rinker Boats
- Model: 360 Express Cruiser
- Year: Unavailable
- Part Number: 2230212
- Part Manufacturer: BEP
- Part Number: 63438
- Material: Aluminum
- Color: Black
- Finish: Textured
- Electrical: 48 Volt
- Overall Dimensions: 16″ H x 10″ W x 5 1/2″ D
- Mounts: (8) 3/16″ Dia. Mounting Holes set Around the Perimeter
- Connections: (2) 12-Pin Female | (1) 6-Pin Female
