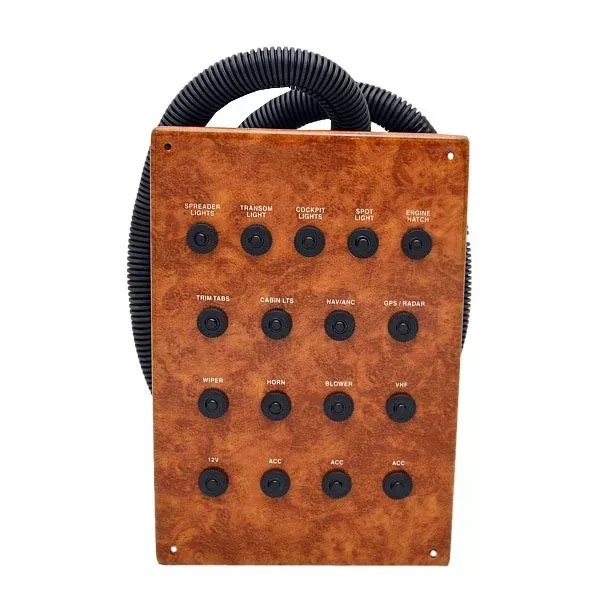

Boat part number 1062534 is a new push button breaker panel for a 320 Rinker Boat, part number 2066451 (years unavailable) .
This Rinker push button breaker panel is constructed of marine grade plastic with a faux woodgrain finish and a metallic silver font. Measures approximately 7 3/8″ long by 1/4″ thick by 10 7/8″ high overall. Features (4) 1/8″ diameter mounting holes spaced approximately 6 1/2″ apart center on center across, and 9 15/16″ apart center on center from top to down. Features (4) raw ended red wires and (1) 15 male pin connector.
Featuring 17 black push-to-reset breaker buttons they are:
- Spreader Lights
- Transom Lights
- Cockpit Lights
- Spot Lights
- Engine Hatch
- Trim Tabs
- Cabin LTS
- Nav/ANC
- GPS/Radar
- Wiper
- Horn
- Blower
- VHF
- 12V
- (3) ACC
Specifications:
- Boat Manufacturer: Rinker
- Model: 320
- Years: Unavailable
- Part Number: 2066451
- Material: Marine Plastic
- Colors: Faux Woodgrain / Metallic Silver
- Overall Dimensions: 7 3/8″ L x 1/4″ Thick x 10 7/8″ H
- Mounts: (4) 1/8″ Dia. paced approximately 6 1/2″ apart center on center across, and 9 15/16″ apart center on center from top to down
- Connection: (4) raw ended red wires and (1) 15 male pin connector
