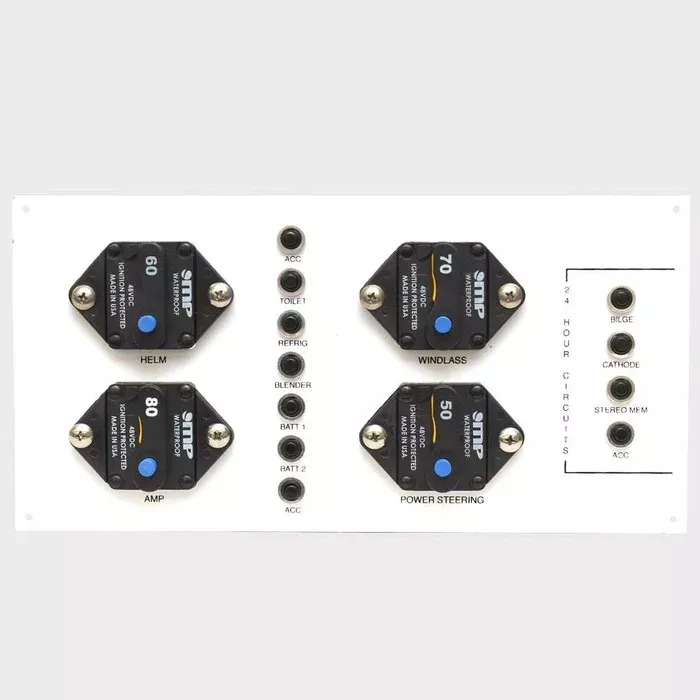

Boat part number 1109553 is a new circuit breaker panel with 24 hour circuits for Rinker Boats, part number 2230402 .
This circuit breaker panel is constructed out of aluminum with a glossy white powder coat. It measures approximately 12″ W x 6″ H overall. There are (4) 1/8″ Dia. mounting holes and (3) 3/8″ ID battery lugs.
Features the following:
- Helm Breaker | 60A
- Amp Breaker | 80A
- (3) Accessory Push-to-Reset Breaker | 10A
- Toilet Push-to-Reset Breaker | 20A
- Refrigerator Push-to-Reset Breaker | 15A
- Blender Push-to-Reset Breaker | 15A
- Battery 1 Push-to-Reset Breaker | 20A
- Battery 2 Push-to-Reset Breaker | 20A
- Windlass Breaker | 70A
- Power Steering Breaker | 50A
- Bilge Push-to-Reset Breaker | 5A
- Cathode Push-to-Reset Breaker | 10A
- Stereo Memory Push-to-Reset Breaker | 15A
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Rinker
- Part Number: 2230402
- Part Manufacturer: Unavailable
- Part Number: 5000273
- Material: Aluminum
- Color: White
- Finish: Glossy
- Overall Dimensions: 12″ W x 6″ H
- Mounts: (4) 1/8″ Dia. mounting holes
- Connections: (3) 3/8″ ID battery lugs
