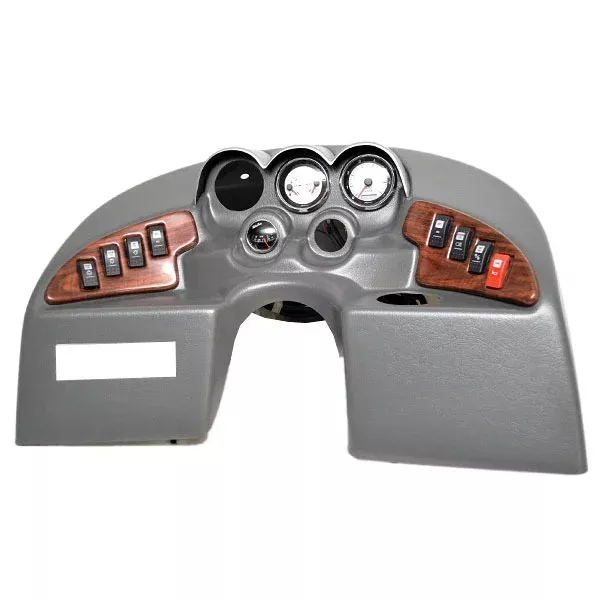

Boat part number 1052053 is a new console panel from Rinker Boats, part number 238929 . Model / year unavailable.
This panel is constructed from textured charcoal-colored plastic with faux woodgrain accents. Measures approximately 32″ W x 15″ H x 27″ D overall. Hosts (1) 11-pin male, (1) 12-pin female, (1) 4-pin female, (1) 3-pin female, (1) 2-pin female connections.
This dash panel features (2) pre-installed Faria gauges. Each of these clear halogen illuminated gauges feature a silver colored bezel, domed lens, gray face with black trim, white and black lettering and numerals, with red needles.
This panel features the following gauges:
- (1) Fuel / Volt Multifunction
- (1) 7000 RPM Tachometer | Set up for 4/6/8 Cylinder and 10/12 Pole Engines
- (1) Ritchie Compass
Features the following Carling lighted rocker switches:
- (1) On/Off “Court Lts”
- (1) On/Off “Floor Lts”
- (1) On/Off “Int Lts”
- (2) On/Off “ACC”
- (1) On/Off “Docking Lts”
- (1) On/Off/On “Nav Anc”
- (1) Momentary On/Off “Horn”
This panel hosts the following blank cutouts that measure as follows:
- (1) 3 3/8″ Dia. (Gauge)
- (1) 2″ Dia. (Gauge)
- (1) 3 3/4″ Dia. (Cupholder)
- (1) 7 1/4″ W x 2″ H (Rectangular)
Specifications:
- Boat Manufacturer: Rinker
- Model / Year: Unavailable
- Part Number: 238939
- Material: Textured Plastic
- Color: Charcoal Gray
- Overall Dimensions: 32″ W x 15″ H x 27″ D
- Connections: (1) 11-Pin Male | (1) 12-Pin Female | (1) 4-Pin Female | (1) 3-Pin Female | (1) 2-Pin Female
- Mounts: (5) 1/4″ Dia. x 1 1/4″ L Threaded Bolts
- Set up for 4/6/8 Cylinder and 10/12 Pole Engines
