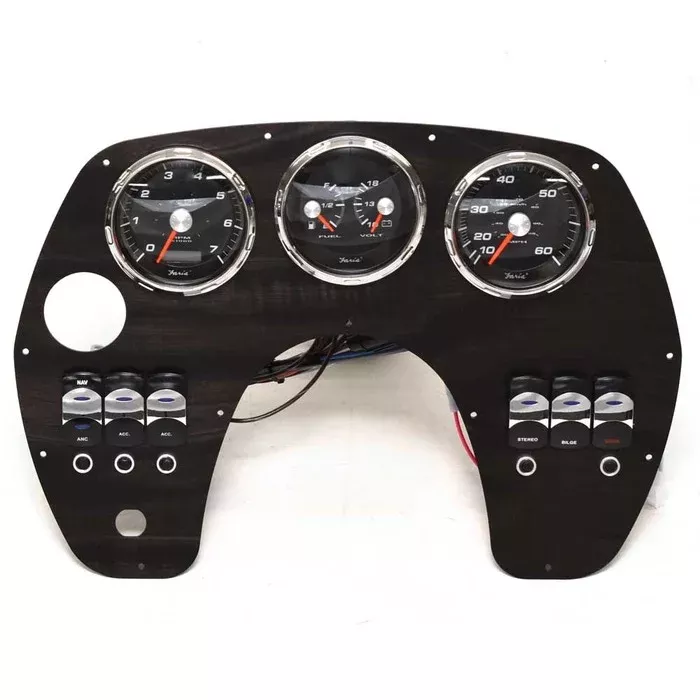

Boat part number 1095568 is a new gauge dash panel for Rinker Boats, part number unavailable.
This gauge dash panel is constructed out of dark gray faux woodgrain plastic. It measures approximately 16 7/8″ L x 11 7/8″ H overall and mounts with (13) 1/8″ Dia. mounting holes.
This panel has (3) pre-installed gauges from Faria. Each clear LED illuminated gauge has domed lens, silver colored bezels, black faces, orange needles, gray accents with white lettering.
This panel features the following gauges:
- (1) Tachometer Gauge | 7000 RPM | P/N: THC623D | (1) 6-Pin Deutsch | Set up for Mercury Engines | 4/6/8/10/12 Pole Outboard / 4/6/8 Cycle Inboard
- (1) Multi-Function Gauge (Fuel / Volt) | P/N: GFC633B | (1) 6-Pin Deutsch
- (1) Speedometer Gauge | 60 MPH (95 km/h) | P/N: SEK635A | (1) Pito Connection
This panel features the following pre-installed blue illuminated rocker switches:
- (1) NAV/ANC | ON/OFF/ON
- (2) ACC | ON/OFF
- (1) STEREO | ON/OFF
- (1) BILGE | ON/OFF
- (1) HORN | MOMENTARY ON/OFF
This panel also includes the following:
- (5) Black breaker switches
- (1) 2″ Dia. Cutout
Has the following connections:
- (3) Single Pin Male
- (2) Single Pin Female
- (1) 4-Pin Female
- (1) 2-Pin Female
- (1) 9-Pin Female
Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Rinker Boats
- Part Number: Unavailable
- Part Manufacturer: Unavailable
- Material: Plastic
- Color: Dark Gray Faux Woodgrain
- Overall Dimensions: 16 7/8″ L x 11 7/8″ H
- Mounts: (13) 1/8″ Dia.
- Fuel: Gasoline
- Set Up For: 4/6/8/10/12 Pole Outboard / 4/6/8 Cycle Inboard
- Used on These Engines: Mercury Engines
