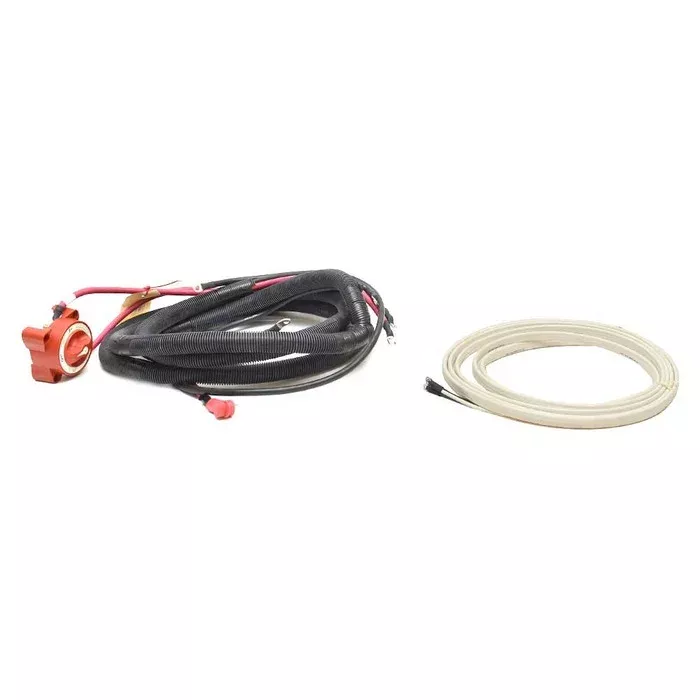

Boat part number 1109818 is a new set of (2) generator battery harness cables for Rinker Boats, part numbers 222722 / 223180 .
Harness set includes the following:
- (1) Battery Switch Harness | Approx. 14′ length | (5) 3/8″ ID and (1) 5/16″ ID terminal lugs
- (1) 8 AWG 600V 105°C Battery Harness | Approx. 19′ length | (6) 3/16″ ID terminal lugs
The battery switch harness features (1) pre-installed single circuit OFF/ON rotary battery switch from Blue Sea Systems. It is rated at max 48V DC and 350A continuous.
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Tag reads: BATTERY CABLE HARNESS / GENERATOR / R-280-GEN
Specifications:
- Boat Manufacturer: Rinker
- Part Number: 222722 / 223180
- Material: Black / White
- Electrical: 48V DC / 350A
